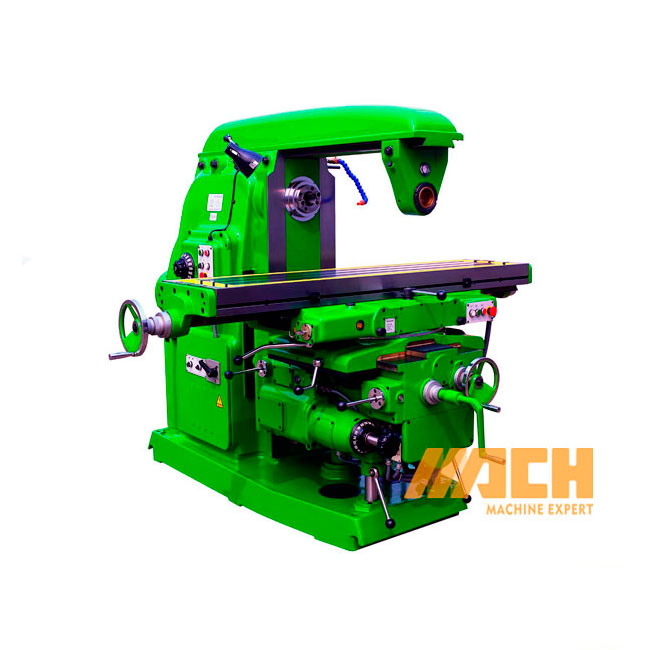

X6140 Manual Vertical Universal Metal Mill Machine

Mill Machine
MOQ: 1

Color:
Quantity:
  • X6140
  • MACH
X6140 Manual Vertical Universal Metal Mill Machine


Specifications

SPECIFICATION
UNIT
X6132
X6140
TABLE SIZE
MM
1320×320
1600×400
NO./WIDTH/DIS. OF T-SLOT
MM
3-18-70
3-18-90
MAX.LOAD OF TABLE
KG
500
800
SPINDLE TAPER

ISO50
ISO50
SPINDLE SPEED RANGE
R/MIN
30-1500
30-1500
SPINDLE SPEED STEP
STEPS
18
18
TABLE TRAVEL(X,Y,Z)
MM
700/255/320(MANUAL)
680/244/300(AUTO)
900/315/380(MANUAL)
880/300/360(AUTO)
CUTTING FEED SPEED
MM/MIN
X :23.5-1180; Y: 15-786; Z: 8-394
X,Y: 23.5-1180; Z: 8-394
RAPID FEED SPEED(X,Y,Z)
MM/MIN
2300/1533/770
2300/2300/770
DISTANCE BETWEEN SPINDLE AXIS AND TABLE SURFACE
MM
30-350
30-410
SPINDLE MOTOR POWER
KW
7.5
11
OVERALL DIMENSION(L×W×H)
MM
2294×1770×1904
2556×2159×1770
MACHINE WEIGHT
KG
2800
3850




Standard-Parts

Quartz Lamp
Cooling System
Emergency Stop
CE standard electrical components




Optional-Parts

3-axes SINO DRO
Flat Vise 200mm
Universal milling head
Ball Screws on X,Y axis
Universal dividing head F11125A
Rotary table TS250A




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the metal mill machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The metal mill machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the metal mill machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the metal mill machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the metal mill machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the metal mill machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
