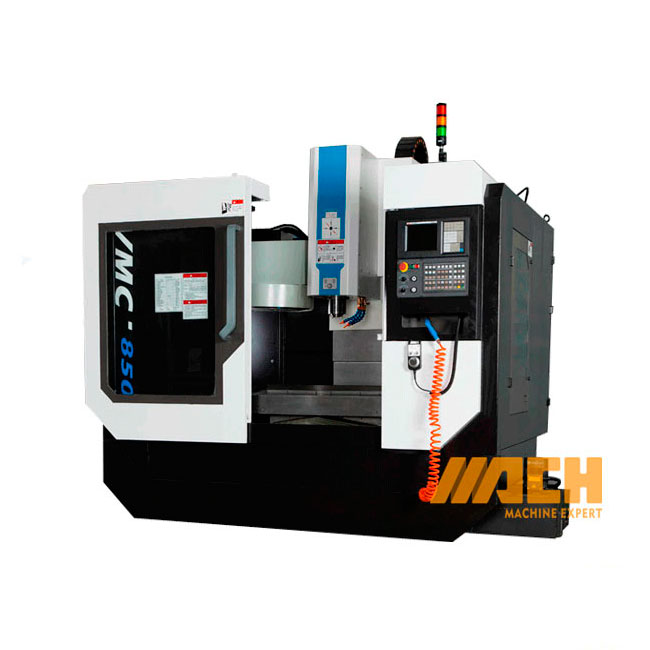

VMC850 Automatic Vertical CNC Milling Machine Center

CNC Milling Machine Center
MOQ: 1

Quantity:
  • VMC850
  • MACH
VMC850 Automatic Vertical CNC Milling Machine Center


Specifications

Specifications VMC850 Unit
Worktable :
Table size mm 1000x500
T slot    no 5
Centre distance  mm 100
T-Width    mm 18
Max. load of worktable kg 500
Machining range :
X axis travel   mm 850
Y axis travel mm 500
Z axis travel mm 500
Spindle nose to table surface mm 150-650
Spidle axis to column surface mm 510
Spindle travel mm no
Spindle :
Spindle  taper BT40
Speed Range  rpm 40-6000
Max.spindle torque N.M 26.3
Motor:
Spindle motor power kw 7.5
Feed motor (X/Y/Z) KW 1.8
Feed :
 Cuttiing feed  X/Y/Z mm / min 2-4000
Rapid feed  X/Y/Z m / min 18
Tool magazine:
Tool magazine capacity piece 16/24(Optional)
Tool magazine type umbrella/arm
Max. tool diameter (full) mm 130
Adjacent socket empty mm
Max. tool length mm
Max. tool weight kg 8
Tool changing time (tip to tip) s 3
Accurancy:
Positioning accuracy mm ±0.015
Repeat  positioning accuracy  mm ±0.0075
Others:
Air pressure Mpa 5-6
Overall dimensions(LxWxH) mm 2450*2200*2300



Standard-Parts

Max spindle speed 8000rpm ( fixed to 6000 rpm before delivery )

Tool changer is BT40x16 Umbrella type tool magazine

Linear guideway

Whole Protection

Automatic Lubrication unit

Quazrt Lamb

Coolant supply system

Elecric handwheel





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the machine center. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The machine centers are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the machine centers are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the machinecenters were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the machine center, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the machine centers within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
