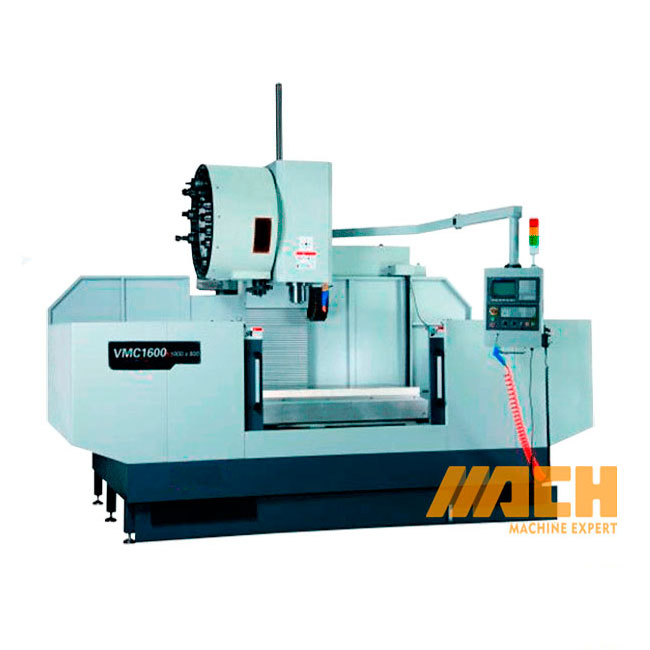

VMC1600 Large High Precision Vertical CNC VMC Machine

CNC VMC Machine
MOQ: 1

Color:
Quantity:
  • VMC1600
  • MACH
VMC1600 Large High Precision Vertical CNC VMC Machine

features

(1) X axis adopt the slider move the overall structure, to ensure the precision of the X axis and rigid processing, hard track Z axis, so as to ensure the accuracy of machine tool process and rigidity.

(2) Taiwan high speed gearbox spindle 6000rpm.

(3) Taiwan famous brand disc type knife library, the capacity of 24, manipulator in knife, reliable action, tool change rapidly.

(4) Cooling system with large flow, high lift water pump, ensure that under the high speed cutting with sufficient cooling.



Specifications

Specifications
units
VMC1600
VMC1300
Table travel (X,Y,Z)
mm
1600*850*700
1300*700*650
Table size
mm
1800*800
1400*710
Number/width/distance of T-slot
mm
5-22-150
5-18-1152
Max load of table
kg
2000
1000
Distance from spindle nose to table surface
mm
200-900
150-800
Distance from spindle axis to column guideway
mm
880
785
Rapid feed speed
m/min
15,15,12
18/18/15
Feed speed
mm/min
1-8000
2.5-5000
Taper of spindle
BT50
BT50
Spindle speed range
rpm
40-6000
40-6000
Spindle motor power
kw
SERVO15/18.51
11-15
Tool magazine capability
qty
24
24
Max weight of tool
kg
15
15
Max dimension of tool
mm
Ø200*300
Ø110*300
Positioning accuracy
mm
±0.02
±0.02
Repeat positioning accuracy
mm
0.01
0.01
Min. Time of tool change
sec
3
3
Overall dimension
mm
4400*3400*3200
3700*3350*2890
Machine weight
kg
13000
11000




Standard-Parts

X, Y Axis Taiwan Linear guideway
Turret-type tool magazine capability 24 tools
BT50 8000rpm Spindle Unit

Z axis plastic coated surface hardened rail
Whole Protection
Automatic Lubrication unit
Quartz Lamp
Coolant supply system
Elecric handwheel
Taiwan Leadscrew



Optional-Parts

Electromagnetic Doorlock
Automatic Chained chip conveyor




Guarantee


Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cnc vmc machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The cnc vmc machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the cnc vmc machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the cnc vmc machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the cnc vmc machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the cnc vmc machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
