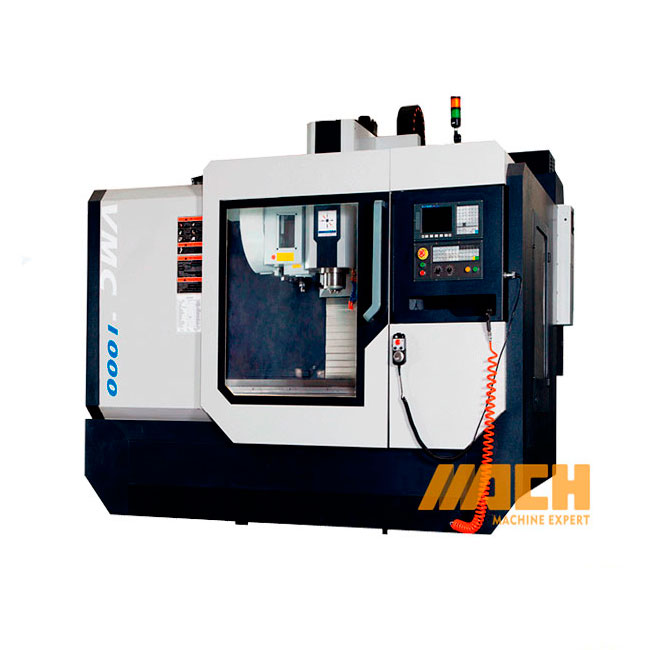

VMC1000 Automatic High Quality CNC Vertical Machining Center

Vertical Machining Center
MOQ: 1

Quantity:
  • VMC1000
  • MACH
VMC1000 Automatic High Quality CNC Vertical Machining Center


Specifications

Specifications Units VMC1000
Table travel (X,Y,Z) mm 1000×600×550

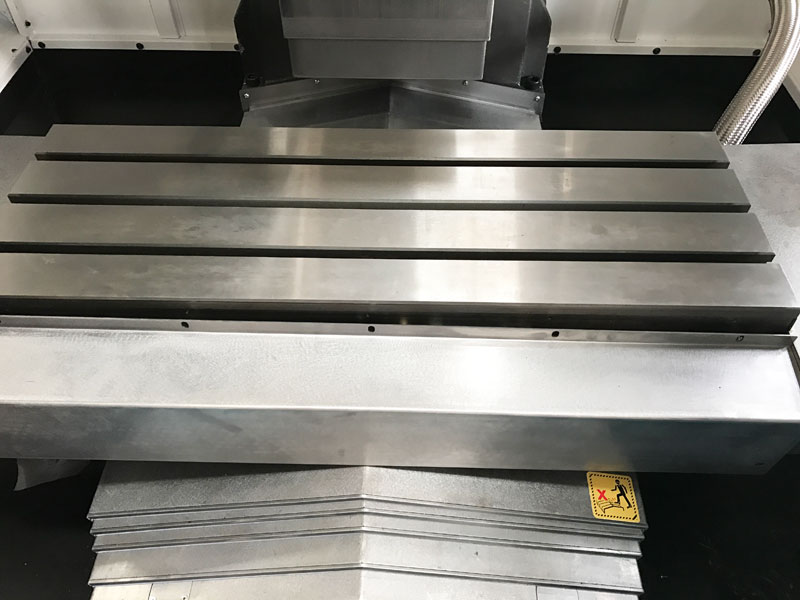

Table size mm 1100×600
Number/Width/Distance of T-slot mm 5-18-100
Max. load of table kg 600
Distance from spindle nose to table surface mm 150-700
Distance from spindle axis to column guideway mm 660

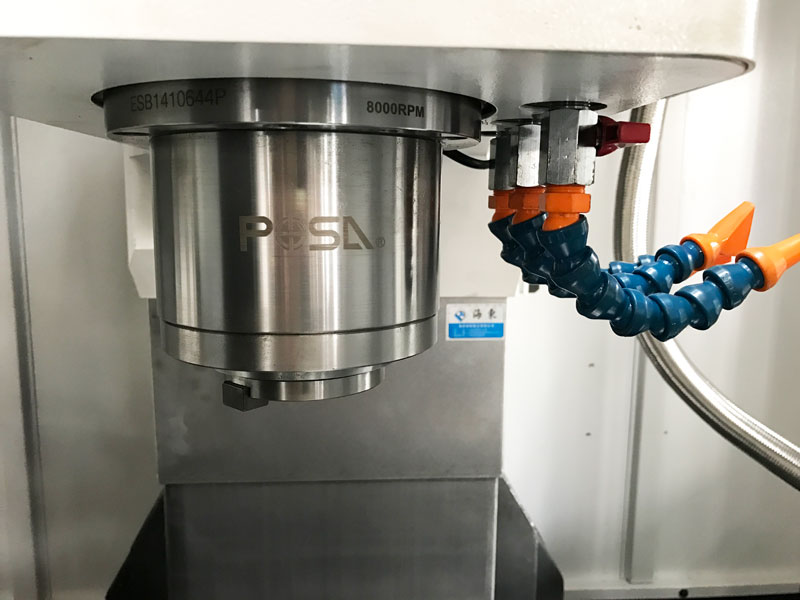

Taper of spindle BT40
Spindle speed range rpm 60-6000
Spindle motor power kW 7.5/11
Rapid feed speed mm/min 48、48、36
Cutting feed speed mm/min 2.5-10000
Positioning accuracy mm ±0.015
Repeat positioning accuracy mm 0.0075
Tool magazine capability qty 20
Max. weight of tool kg 8
Max. dimension of tool mm Φ150×350
Min. time of tool change sec 1.4
Overall dimension mm 2800×2200×2600
Machine weight kg 5370



Standard-Parts

With Arm Type Tool
Max spindle speed 10000rpm
Tool changer is BT40x16 Umbrella type tool magazine

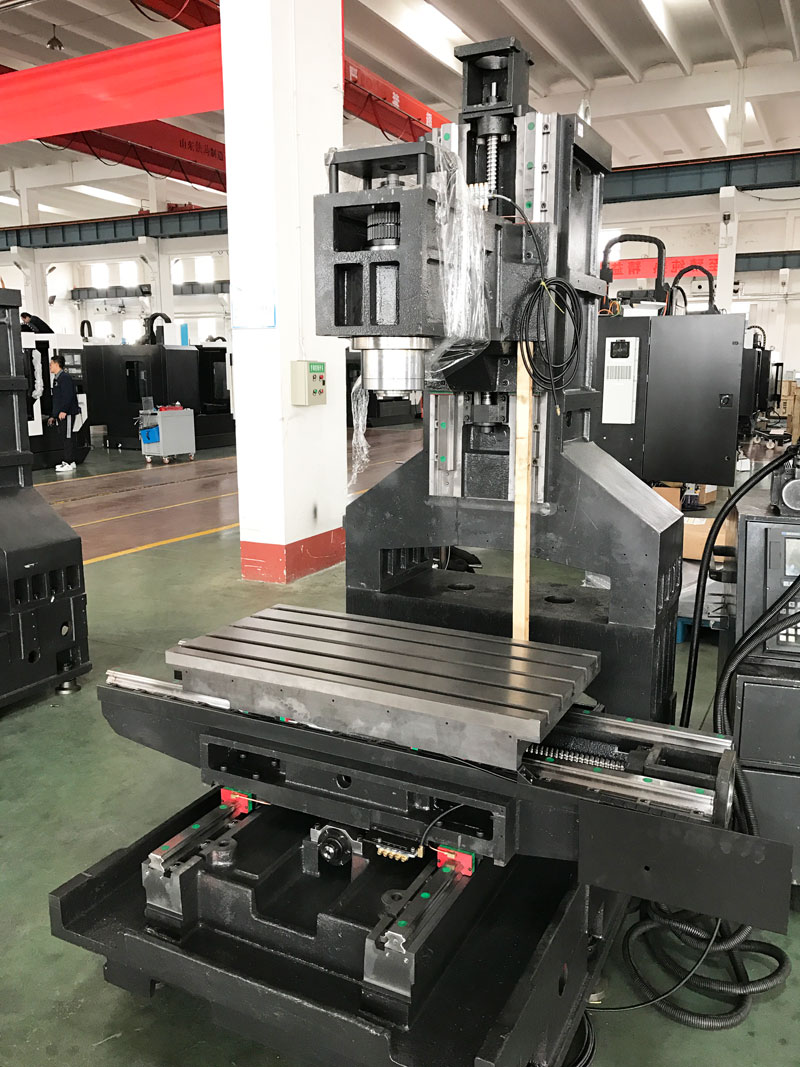

Linear guideway
Whole Protection
Automatic Lubrication unit
Quazrt Lamb
Coolant supply system

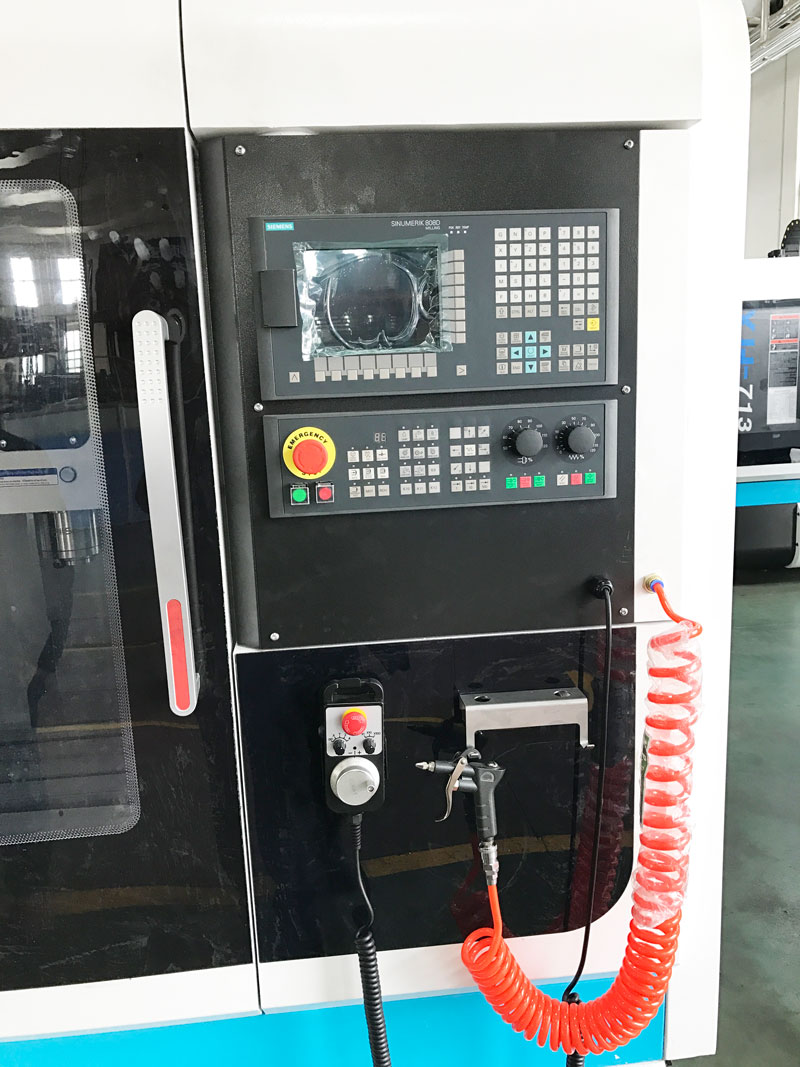

Elecric handwheel
Three-axis plastic hard Rail
Taiwan Scew



Optional-Parts


Electromagnetic Doorlock

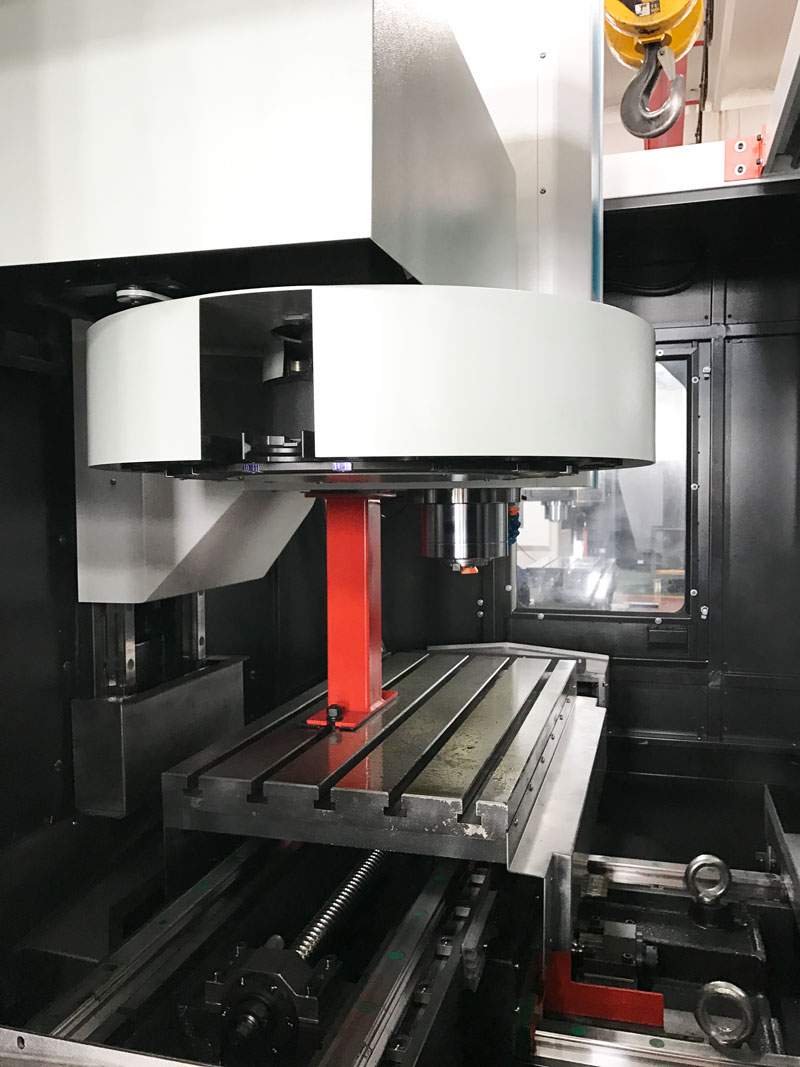

Disc-type tool magazine capability 24  tools
Automatic Rotating Chip Remover
Automatic Chained chip conveyor
CNC four-axis (rotary table TK13250E)





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the vertical machining center. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The vertical machining centers are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the vertical machining centers are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the vertical machining centers were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the vertical machining center, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the vertical machining centers within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
