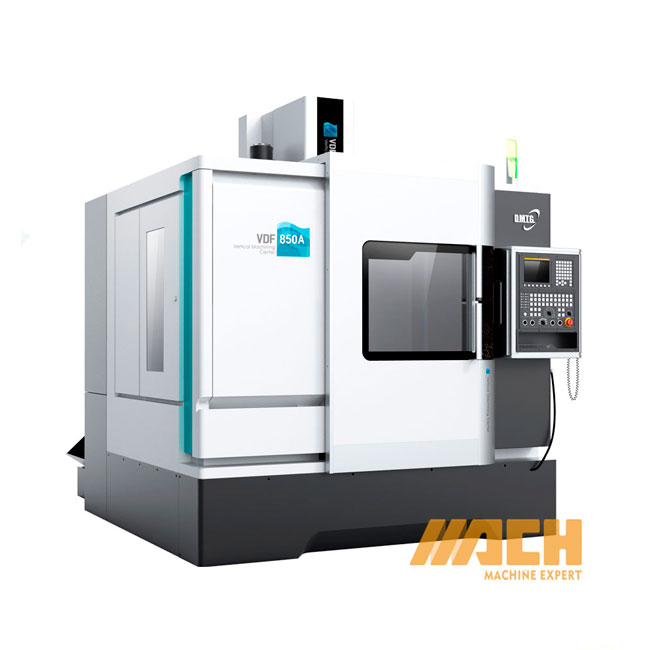

VDF850A Dalian DMTG CNC VMC Vertical Machining Center

Dalian DMTG CNC Vertical Machining Center
MOQ: 1

Quantity:
  • VDF850
  • MACH
  • 8458.1100
VDF850A Dalian DMTG CNC Vertical Machining Center



Specifications

Work table

T slotsNo.×W×P

5×18×100 mm

Max. table load

500 kg

Table sizes

1000×500 mm

Travels and feeds

X/Y/Z-axis travel

850/500/550 mm

Spindle nose to table surface

150 - 700mm

Spindle center to column surface

575mm

X/Y/Z-axis federate

1-10000mm/min

X/Y/Z-axis rapid traverse

24/24/20 m/min

Ballscrew size

X/Y/Z:40×10mm

Spindle

Motor power

7.5/11 kW

Taper

ISO #40(7:24)

Spindle peed

60-8000 r/min

Tool changer

Tool number

20

Tool type/taper shank

BT40

Max. tool weight

8 kg

Max. tool dia.

(without adjacent/ with adjacent tool)

Φ100/130mm

Type tool changer

Arm type

Tool change time (T-T)

6s

Accuracy

Positioning

X/Y/Z0.025/0.016/0.020 mm

Repeatability

X/Y/Z0.010/0.006/0.008 mm

Required air

0.6 Mpa

Overall dimensions

2790 x 2460 x 2577mm

Machine weight

5500 kg

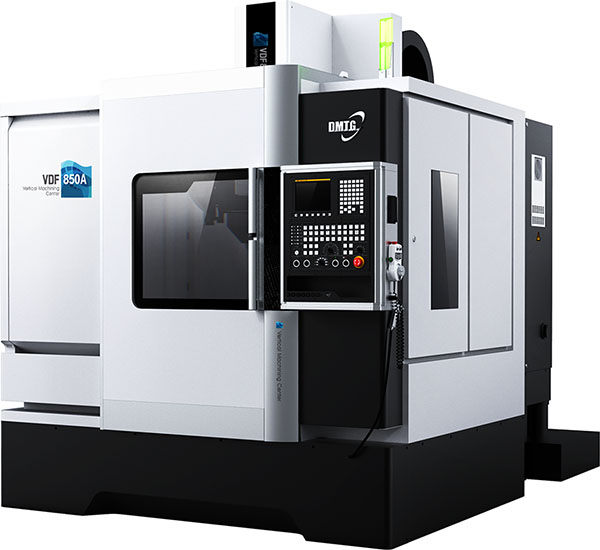

VDF850A

Standard-Parts

Item

Base Machine Configuration

1

Fanuc 0i MF(5) CNC control

or Siemens 828D control

2

8000rpm spindle

3

Spindle motor 7.5/11kw (Fanuc)

4

Taper size BT40

5

ARM type ATC, 24 tools

6

X,Y, Z axis linear way

7

Auger type chip conveyor

8

Coolant system

9

Enclosure Guarding

10

MPG

11

Spindle air tight anti dust system

12

Spindle cone air blow device

13

Air Gun

14

Rigid tapping

15

Electrical cabinet with heat exchanger


Optional-Parts

NO.

Item

1

Direct drive 10,000rpm spindle #40+oil chiller

2

Direct drive 12,000rpm spindle #40+oil chiller

3

Coolant through spindle with 2Mpa

high pressue unit for belt drive spindle

4

Air conditioner

5

Hi-Volume Flood Coolant System

6

Door safety Inter-lock

7

Lift type chip conveyor

8

Tool Setter RENISHAW TS27R

9

Water gun


Guarantee



Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cnc machining cneter. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The cnc machining cneters are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.

  • When the cnc machining cneters are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.

  • During this period of one year warranty , if the cnc machining cneters were damaged by non-artificial reasons, we are responsible for repairing or changing parts.

  • During this period of warranty, if there is something wrong with the cnc machining cneter, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.

  • After the warranty, we charge only cost price for maintaining the cnc machining cneters within three years.

  • Other after-sale terms can be agreed by buyer and seller in addition.
