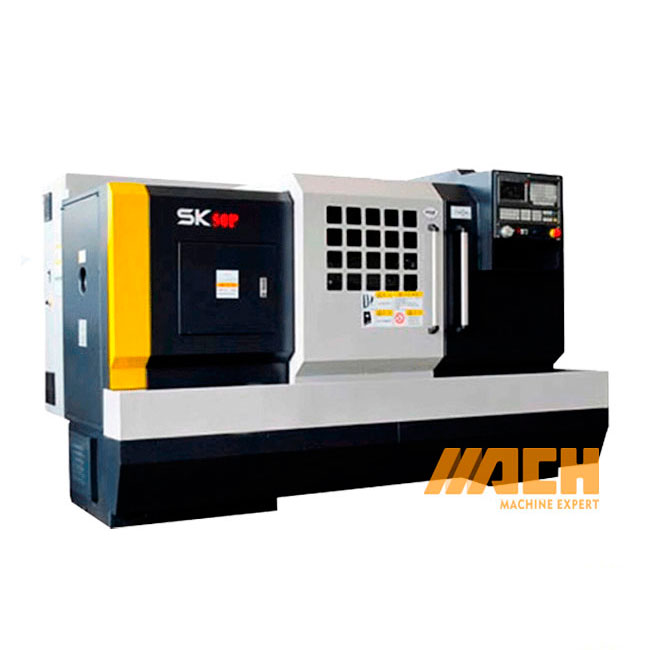

SK50P Bochi Horizontal Economic Flat Bed CNC Lathe

Economic CNC Lathe Machine
Minimum Order Quantity: 1

Color:
Quantity:
  • SK50P
  • MACH
SK50P Bochi Horizontal Economic Flat Bed CNC Lathe


features

-SK50P horizontal CNC lathes that spindle speed are changed mechanically in three gears together with control of a frequency changer.
-The lathe has 4 types (750, 1000, 1500, 2000). Equipped with 4-station (standard)/ 6-station turret (optional), the lathes are available for different cuttings. The sliding door ensures the operator’s safety.
-CNC systems such as Guangzhou 980T,FANUC 0i Mate-TD, Huazhong 21T, Sinumerik 802C basline/802DSL, Dasen 3i, KND1000T,etc. is provided on request.
-The lathes can perform internal and external cylindrical turning, arbitrary taper turning, arc turning, facing and threading. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.



Specifications


ITEMS  UNIT SK40P SK50P
Capacity Max. swing dia. over bed mm Φ400 Φ500
Max. swing dia. over carriage mm Φ200 Φ280
Max. turning diameter mm Φ400/Φ350* Φ500/Φ350*
Distance between centers mm 960/1460/1960
(870/1370/1870)*
Max. turning length mm 820/1320/1820
(750/1250/1750)*
Spindle Type of spindle nose
ISO 702/Ⅱ D8 Short-taper cam-locking type
Spindle bore diameter mm Φ77
Spindle speed rpm 3-step  21-1620  H:162-1620
M: 66-660          L: 21-210
Max. torque of spindle N.m 800
Spindle drive motor power(continuous or 30minutes) kW 7.5
Tailstock Quill diameter mm Φ75
Quill travel mm 150
Tailstock quill taper . Morse No.5
Turret X/Z rapid traverse rate m/min 6/12
Number of tool stations
4(6 Option)
Tool section mm 25×25
X travel mm 300
Z travel mm 900/1400/1900
Others Dimensions(L) mm 2500/3000/3500
 (W) mm 1370
 (H) mm 1690
Package dimensions (L×W×H) mm 3500/4000/4500×2000×2200
Net weight kg 2100/2150/2200 2150/2200/2260



Standard-Parts
Equipment with Fanuc 0i TF(5) control system(x. z servo motor)
The main spindle is driven by inverter motor
Spindle speed change by hand lever (on the head stock) and inverter
4-station electric tool post
Manual 3-jaw chuck
Lubrication unit
Coolant supply system
All standard accessories

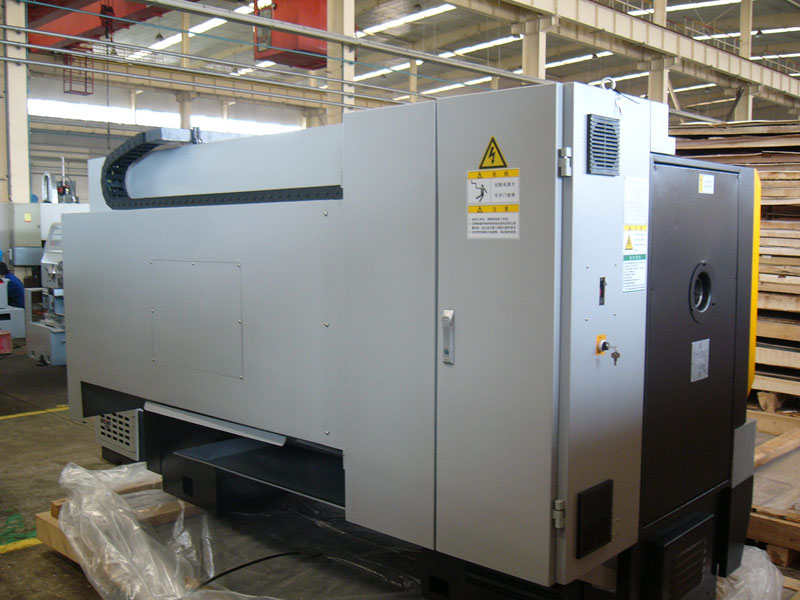

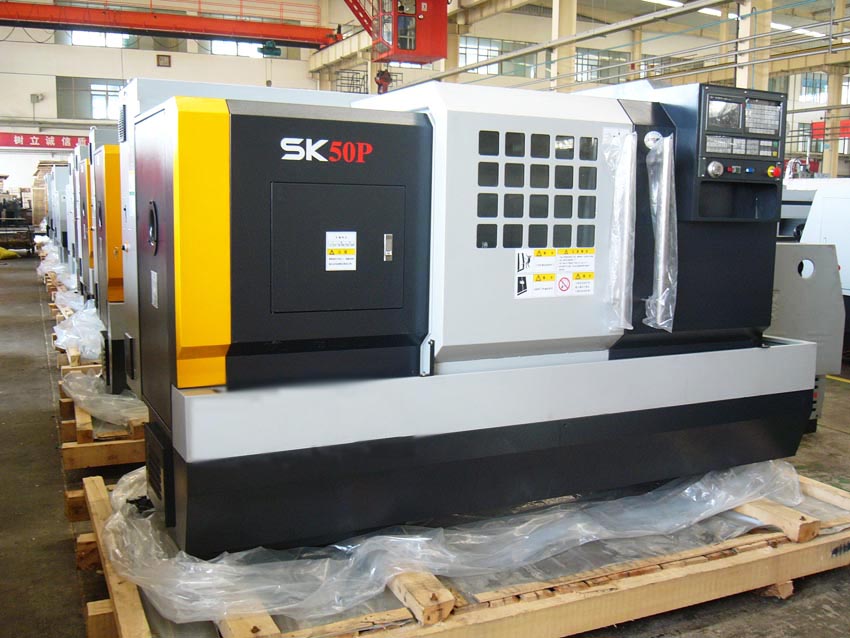

SK50P Bochi Horizontal Economic Flat Bed CNC Lathe (4) SK50P Bochi Horizontal Economic Flat Bed CNC Lathe (5) SK50P Bochi Horizontal Economic Flat Bed CNC Lathe (6)





Optional-Parts
Hydraulic 3-jaw chuck<250mm-Without through hole> and hydraulic power unit
or Hydraulic 3-jaw chuck<250mm-With through hole> and hydraulic power unit
Hydraulic tail stock
6-station electric tool post




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the economic cnc lathe . We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The economic cnc lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the economic cnc lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the economic cnc lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the economic cnc lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the economic cnc lathe machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
