ME1350A Universal Cylindrical Grinder Cylindrical Grinding Machine

Universal Cylindrical Grinding Machine
Minimum Order Quantity: 1

Color:
Quantity:
  • ME1350A
  • MACH
ME1350A Universal Cylindrical Grinder Cylindrical Grinding Machine


Specifications

TECHNICAL SPECIFICATION
Specification(mm) Packing size (mm) Net weight(kg) Gross weight(kg)
L W H
500×1500 5650 2400 2120 8000 9500
500×2000 5650 2400 2120 9000 10500
500×3000 7500 2400 2110 11000 13000
Grinding diameter With steady rest mm Max 200
mm Min 30
Without steady rest mm Max 500
mm Min 30
Max. workpiece weight kg 1000
Center high mm 270
Distance between centers mm 1500 ( ME1350A×1500 )
mm 2000 ( ME1350A×2000 )
mm 3000 ( ME1350A×3000 )
Max. longitudinal travel of worktable mm 1600 ( ME1350A×1500 )
mm 2090 ( ME1350A×2000 )
mm 3090 ( ME1350A×3000 )
wheelstock Wheel speed m/s 35
Spindle speed r/min 892
Rapid approach/withdrawal mm 100
Max. movement mm 410
Grinding wheel Max mm 750×75×305
Min mm 535×75×305
Workstock center Morse M6
Tailstock center Morse M6
Motor of wheelstock KW 15
Total power of motors KW 19.85
GENERAL FEATURE
Movement of sleeve of tailstock 70 Min.manual
0.0025
Auto-periodic feed Yes Wheel dressing and compensation Manual
WORKING ACCURACY
Roundness mm 0.0025
Uniformity of diameter in longitudinal section mm 0.008
Roughness μm Ra0.2




Photos

ME1350A Universal Cylindrical Grinder Cylindrical Grinding Machine (2)

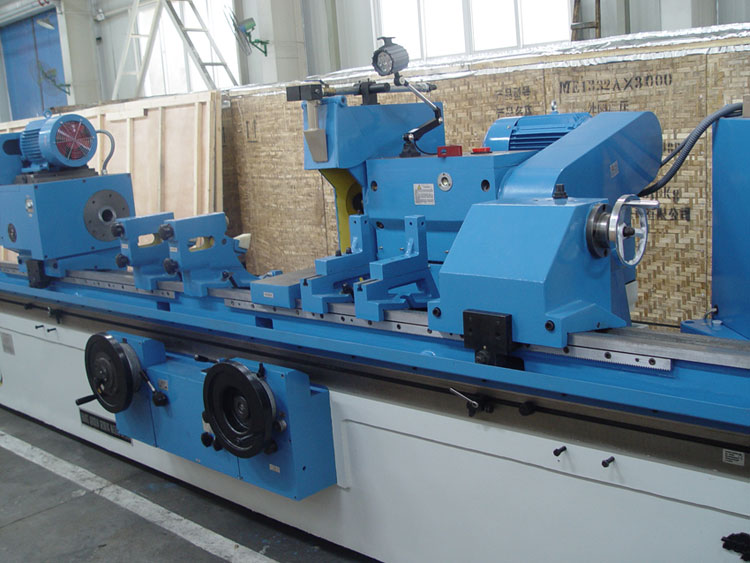

ME1350A Universal Cylindrical Grinder Cylindrical Grinding Machine (3)





Standard-Parts
Oil tank 1set
Wheel balancing arbor 1set
coolant tank 1set
Measuring plate 1set
Wheel dresser 1set
Driving dog 1set
Wheel with flange 1set
Parallel wedge 12.12.16sets
Wheel dismount tool 1set
ME1350A Universal Cylindrical Grinder Cylindrical Grinding Machine (4)

ME1350A Universal Cylindrical Grinder Cylindrical Grinding Machine (5)

ME1350A Universal Cylindrical Grinder Cylindrical Grinding Machine (6)





Optional-Parts

Radius wheel dresser 1set
Positioner 1set
Half center 1set
Wheel balancing stand 1set



Guarantee


Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cylindrical grinder. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The cylindrical grinding machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the cylindrical grinding machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the cylindrical grinding machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the cylindrical grinding machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the cylindrical grinding machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
