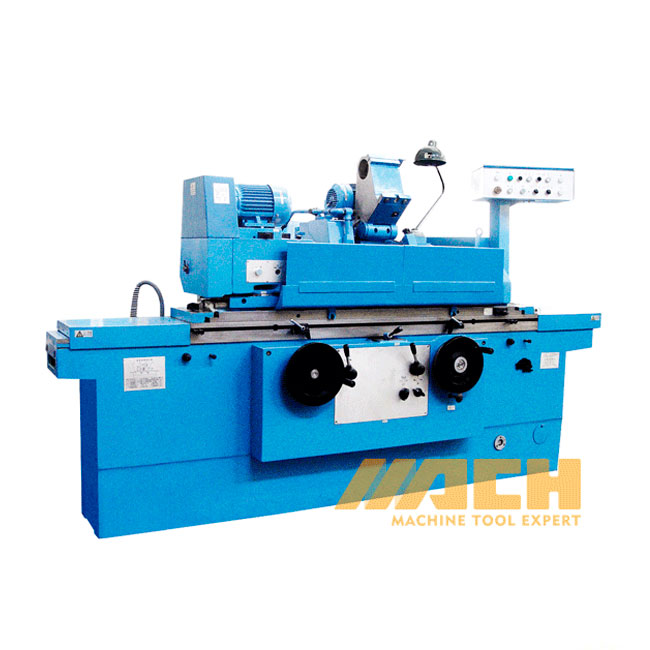

MD1320B Small Horizontal Cylindrical Tool Grinder


Specifications

TECHNICAL SPECICATION
Grinding diameter With steady rest Min. mm 8
Max mm 40
Without steady rest Min. mm 8
Max mm 200
Max. grinding length mm 500
Max. workpiece weight kg 50
Center high mm 125
Distance between centers mm 500
Headstock center Morse 3
Tailstock center Morse 3
Movenment of sleeve of tailstock mm 30
Min. manual feel mm 0.0025
Auto-periodic feed mm Yes
Automatic infeed No
Wheel dressing and compensation Manual
Speed of headstock dial r/min 45,100,210,450
Wheelhead Grinding wheel Max. mm Ф500×50×Φ203
Min. mm Ф350×50×Φ203
Wheel speed m/s 28~35
Spindle speed r/min 1309
Max. movement of wheelstock mm 215
 (Includes the rapid movement)
Rapid approach and withdrawal mm 40
Max. longitudinal travel of table mm 500
Max.swing angle of wpper-worktable Clockwise ° 3
Counter-clockwise ° 6,5,4
Table hydraulic travel speed Max. m/min 4
Min. m/min 0.1
Total power of motors kw 7.125
Outline dimension of machine mm 2120×1575×1570
Packing case size MD1320B×500 mm 3040×1740×1950
MD1320B×750 mm 3200×1900×1950
Net weight kg 35,004,000
Gross weight kg 40,004,500
WORKING ACCURACY
Roundness mm 0.0015
Uniformity diameter of in longitudinal section mm 0.005
Roughness μm Ra0.32
MAIN ACCESSORIES
Coolant tank 1set Wheel balancing arbor 1set
Wheel dresser 1set Driving dog 9sets
Wheel with flange 1set Parallel wedge 9sets
MAIN ACCESSORIES SUPPLIED ON SPECIAL ORDER
Radius wheel dresser 1set Positioner 1set
End dresser 1set Wheel balancing 1set
