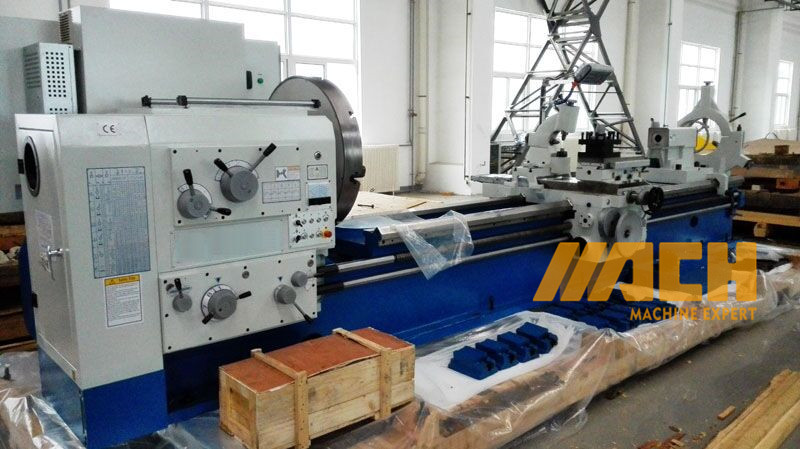

Heavy Duty Lathe Machine Model: CWA6185

We are one of biggest manufacturer of producing Heavy Duty Lathe Machine in China.
Model: CWA6185 is our popular model and we export Heavy duty lathe machine in large quantities to our customers in the workd every year

Quantity:
  • CWA6185
  • DLMACH
Heavy Duty Lathe Machine Model: CWA6185


Main Specification:
Model: CWA6185/3000   850mm × 3,000 mm
CENTRE HEIGHT: 405 mm
MAX. SWING OVER BED: 850 mm
MAX. SWING OVER CROSS SLIDE: 520 mm
MAX. LENGTH OF WORKPIECE: 3,000/4000/5000/6000/7000/8000mm
MAX. LENGTH TO BE MACHINED: 2,800 mm
MAX. WIDTH OF GUIDEWAY: 600 mm
MAX. WEIGHT OF WORK PIECE BETWEEN CENTERS: 4,000 KGS
SPINDLE NOSE: ISO A2-11
SPINDLE TAPER HOLE: METRIC NO. 120
SPINDLE BORE: 105 mm
SPINDLE SPEEDS: 5 TO 630 RPM WITH 4 STEPS
NUMBER OF FEEDS AND RANGES: 64 NO.S
LONGITUDINAL 0.08 TO 9.6 mm
CROSS SLIDE 0.04 TO 4.9 mm
COMPOUND SLIDE 0.02 TO 2.4 mm
NO. & RANGE OF METRIC THREADS: 56 KINDS, 1-120 mm
NO. & RANGE OF INCH THREADS: 56 KINDS, 30 - 1/4 T.P.I.
NO. & RANGE OF MODULE THREADS: 56 KINDS, 0.5 - 60
NO. & RANGE OF DIAMETRICAL PITCHS: 56 KINDS, 60 - 0.5
RAPID TRAVERSE SPEED: LONGITUDINAL, 3,640 mm / min
CROSS, 1,800 mm / min
TOOL POST, 900 mm / min
DIA. OF TAILSTOCK QUILL: 120 mm
TRAVEL OF TAILSTOCK QUILL: 250 mm
TAPER HOLE OF TAILSTOCK QUILL: MORSE NO. 6
HARDENED & GROUND BEDWAY
POWER OF MAIN MOTOR WITH INVERTER: 15KW
ELECTRICAL POWER: 380 VOLTAGE / 3 PHASE / 50 HZ

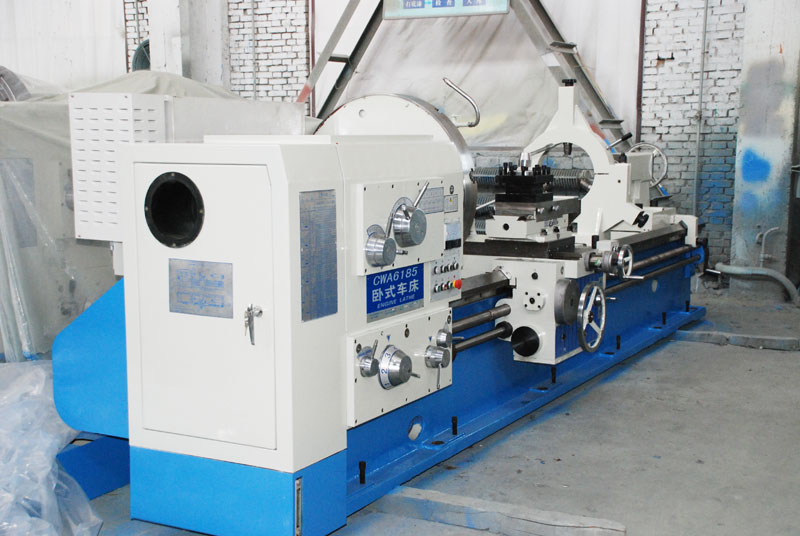

CWA6185

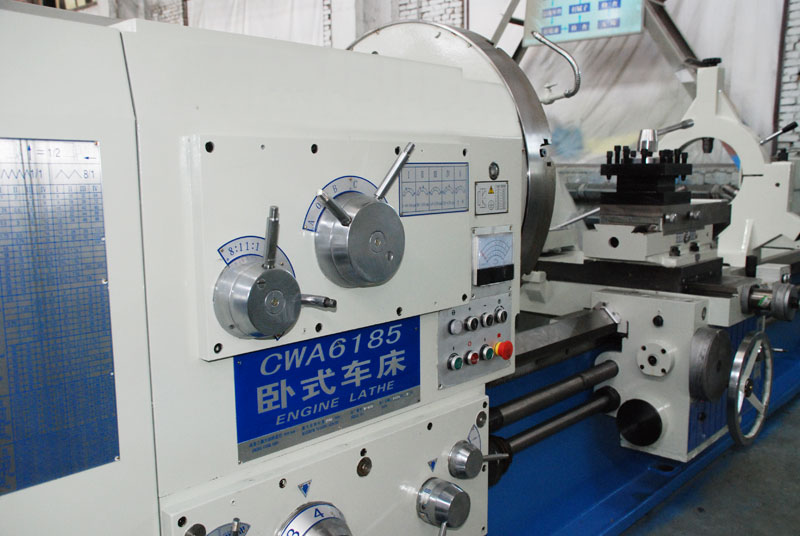

Heavy Duty Lathe CWA6185



Standard Accessories:
4-Jaw Chuck, Diameter of 800 mm, 1 Set
Steady Rest, Range 40 To 350 mm, 1 Set
Follow Rest, Range 30 To 120 mm, 1 Set
Dead Center, 2 Pcs
Living Center, 1 piece
Center Sleeve, 1 Piece
Coolant System
Work Light
Foundation Bolts
Special Tools
