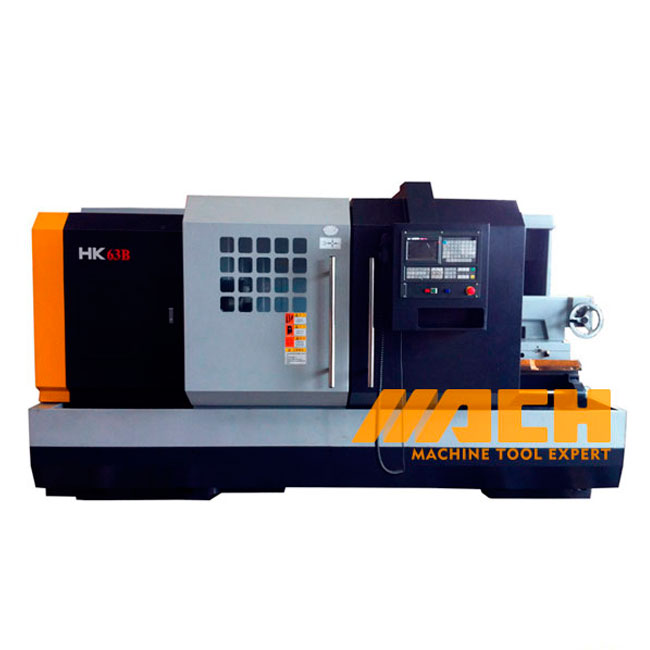

HK63B Bochi Automatic Precision Horizontal Lathe CNC

Bochi Lathe CNC
MOQ: 1

Color:
Quantity:
  • HK63B
  • MACH
HK63B Bochi Automatic Precision Horizontal Lathe CNC


features

HK-B Series lathes  CNC  have high grade cast iron bed, and hardened and precision ground ways. It is rigid with wide span of bed ways and long lasting accuracy. Controlled by FANUC 0i TF(5), GSK980T, DASENG, or other controls. Capable of internal and external turning, taper turning, circular turning, facing, metric and inch threading and etc. Complete with 4-station power turret(standard) to satisfy different machining needs; with sliding doors to ensure safety production; with a centralized operator’s panel for ease of programming and operation. Suitable for small and medium sized batch production of multiple work, especially of complex and high precision work.



Specifications

  ITEMS UNIT PARAMETERS
HK63B HK80B
Capacity Max. swing over bed mm φ630 φ800
Max. swing over slide mm φ360 φ500
Max. machining dia. mm φ630/φ500 φ740
(6-station turret) (Vertical 4-station)
Distance between centers mm 1000/1500/3000
Max. turning length mm 760/1260/2760 (Vertical 4-station)
Bed way width mm 560
Spindle Spindle thru-hole mm φ105
Spindle nose A1-11
Spindle speed r/min H 112~1120  M 37~373  L 20~210
Spindle motor power kW 11
(Freq. changing motor)
Feed X travel mm 370 390
Z travel mm 760/1350/2850
X/Z-axis motor power kW 1.8/2.5
Tailstock Quill diameter mm φ100
Quill travel mm 250
Quill taper Morse  No.5
Turret X/Z-axis rapid traverse rate      m/min 6/7
Number of stations 4/6
Tool section mm 32×32
Others Power source kVA 30
Dimensions(L×W×H) mm 3500/4000/5500×1580×1850 3500/4000/5500×1680×2000
Weight kg 4800/5100/6100 5000/5300/6400

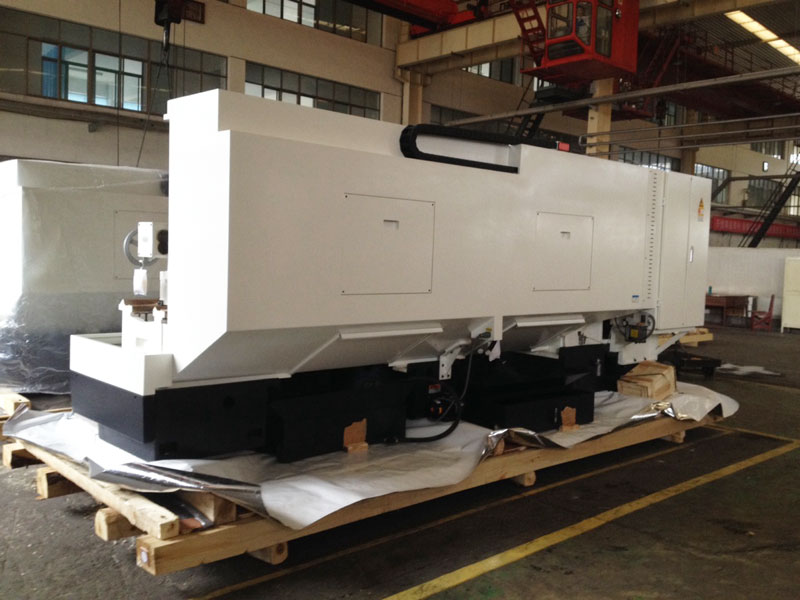

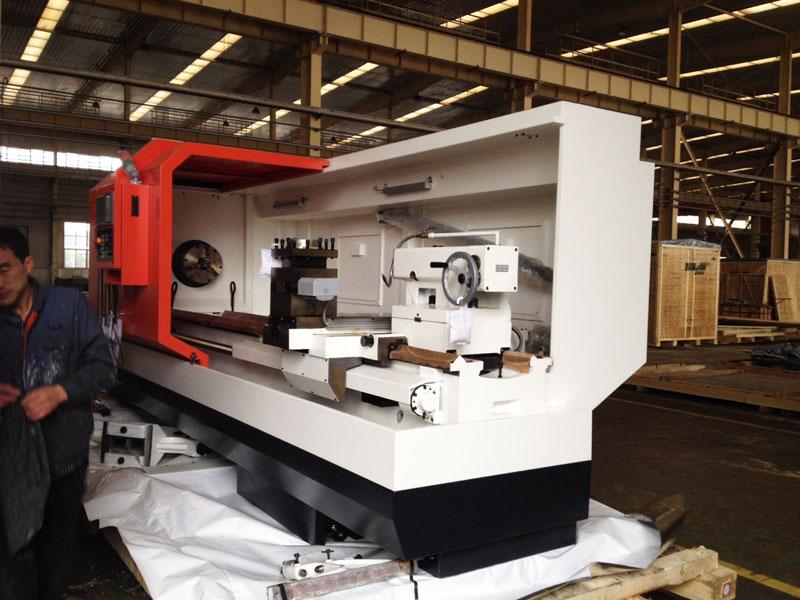

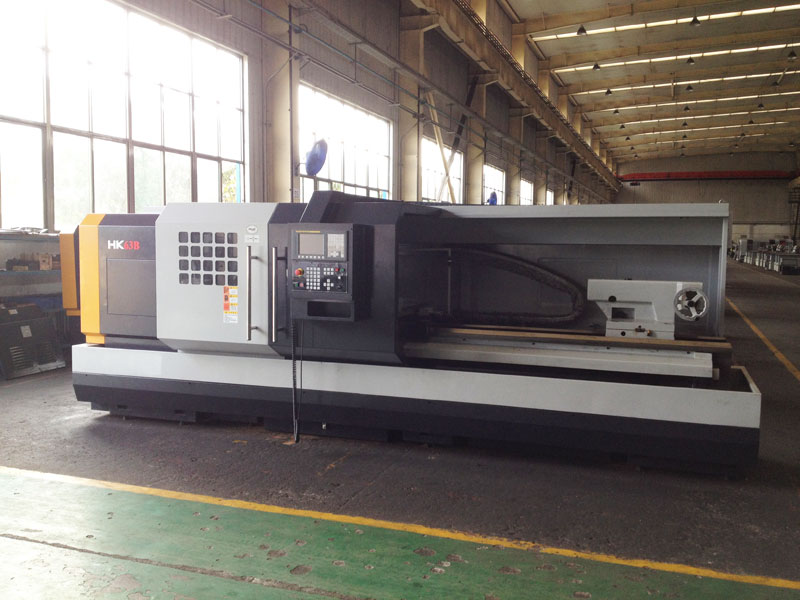

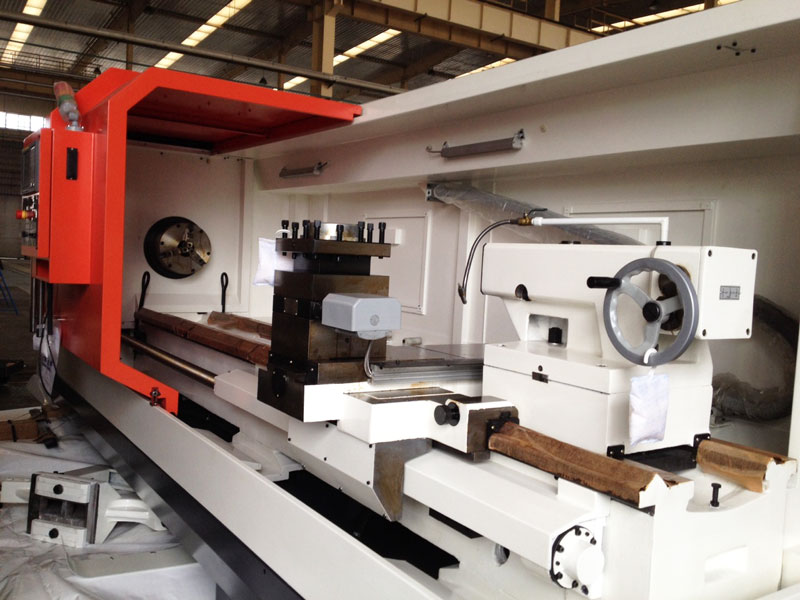

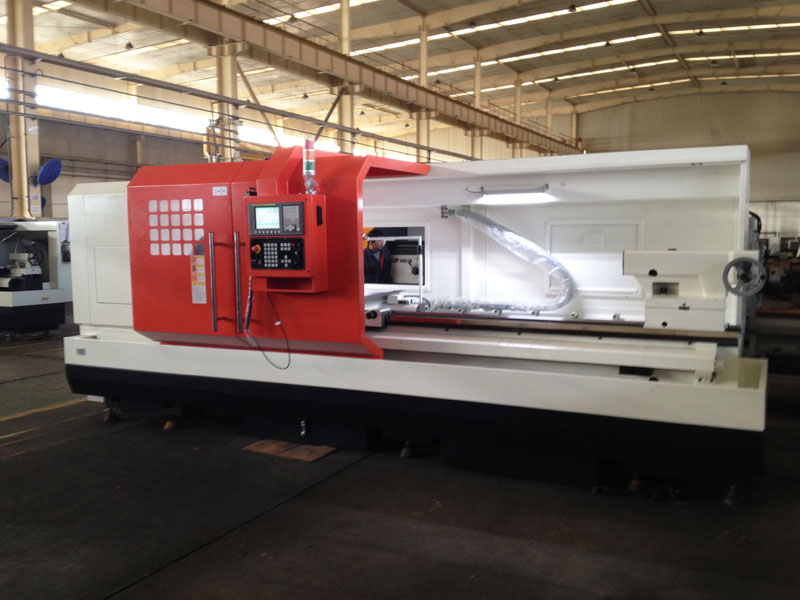

Photos
HK63B Bochi Automatic Precision Horizontal Lathe CNC
Standard-Parts

Equipment with Fanuc 0i TF(5) control system(x. z servo motor).

The main spindle is driven by inverter motor.

Spindle speed change by hand lever (on the head stock) and inverter.

4-station electric tool post

Manual 3-jaw chuck (315mm )

Lubrication unit

Coolant supply system

All standard accessories


Optional-Parts
1). Hydraulic 3-jaw chuck<315mm-Without through hole> and hydraulic power unit


or Hydraulic 3-jaw chuck<305mm-With through hole> and hydraulic power unit

2). Hydraulic tail stock
3). 6-station electric tool post


Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the lathe cnc. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The lathe cnc are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the lathe cnc are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the lathe cnc were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the lathe cnc, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the lathe cnc within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
