Cheap Mini Automatic Vertical Surface Grinder

Surface Grinder
MOQ: 1

Color:
Quantity:
  • MACH

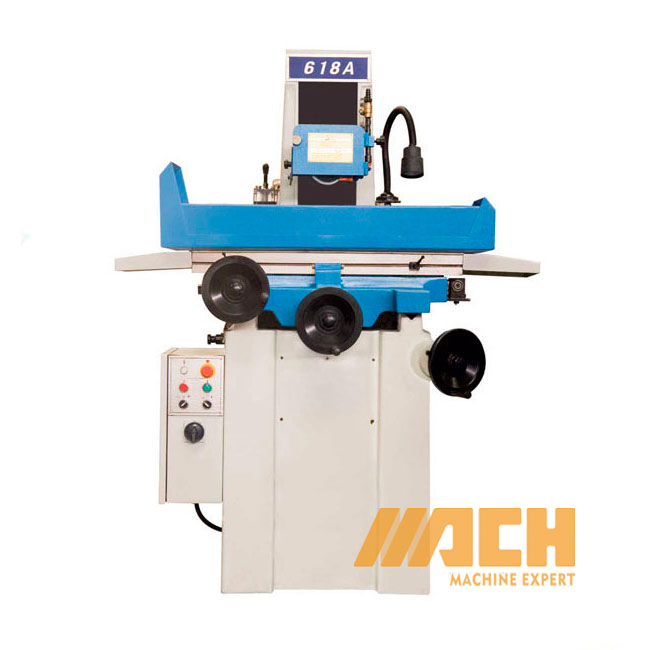

Cheap Mini Automatic Vertical Surface Grinder


Specifications

MODEL

M618A

M818A

SG200

SG250

Table size(mm)

155X460

210X450

150X460

200X520

Table travel(mm)

500X185

500X240

500X200

570X250

Max width to be ground(mm)

165

220

165

220

Max length to be ground(mm)

470

470

470

520

Max height to be ground(mm)

350

350

350

350

Vertical feed

revolution(mm)

1

1

2

2

graduation(mm)

0.005

0.005

0.005

0.005

Max distance from spindle to table surface(mm)

450

450

450

450

Grinding wheel size (mm)

200x13x31.75

200x13x31.75

200x20x31.75

200x20x31.75

Spindle speed (r/min)

3450 (60hz)  2850 (50hz)

Spindle motor(kw)

1.5 (1.1 spindle)

Max load capacity

97

128

110

140

N..W. (kg)

790

920

1000

1120

Overall size(mm)

1330x1090x1680

1330x1150x1680

1360x1350x1710

1450x1390x1770






Standard-Parts

Wheel flange
Balancing arbor
Wheel extractor
Coolant tank
Working lamp
Tool box and tools
Wheel dresser stand (with diamond pen)
Standard grinding wheel
Leveling wedge and bolt
Standard eletro magnetic chuck





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the surface grinder. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The surface grinders are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the surface grinders are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the surface grinders were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the surface grinder, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the surface grinders within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
