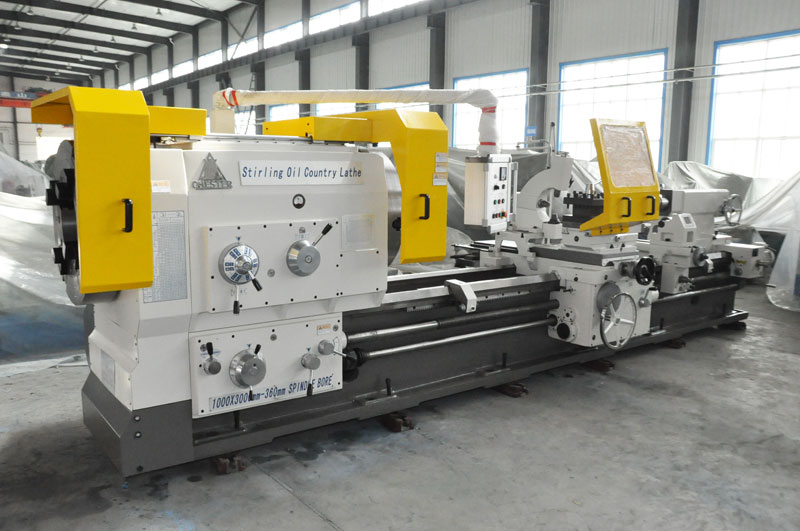

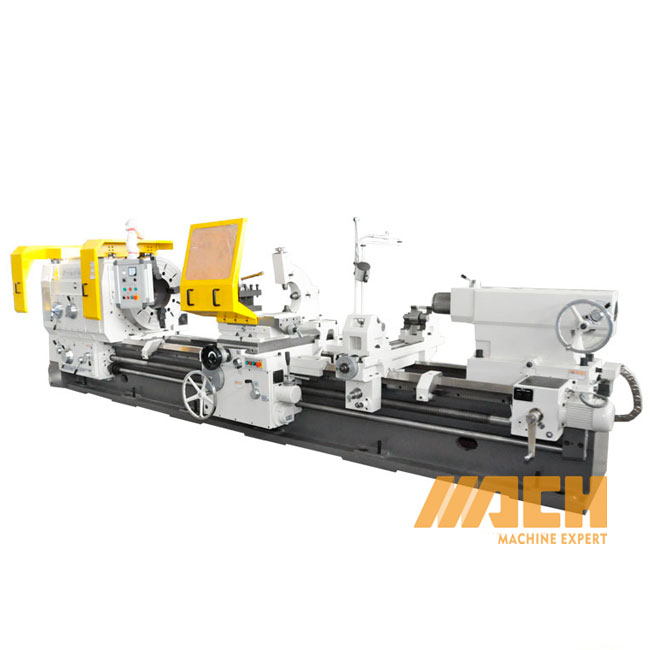

CW6636 Universal Horizontal Pipe Thread Lathe Machine

pipe thread lathe machine
Minimum Order Quantity: 1

Color:
Quantity:
  • CW6636
  • MACH
CW6636 Universal Horizontal Pipe Thread Lathe Machine

Specifications
Model CW6636
Spindle Bore 360 mm
Swing Over Bed 1,000 mm
Swing Over Carrige 640 mm
Distance Between Centers 3000mm
Max. Machining Length of Workpiece 1,800 mm
Support Capacity Between Centers 6 TON
Spindle Speed 18 STEPS, 6.3 TO 315 r. p. m.
Min. Clamping Diameter of Chucks 240 mm
Kind of Longitudinal And Cross Feed 56 kinds
Feed Range
Longitudinal 0.1 to 12 mm/r.
Cross (Half of Longitudinal) 0.05 to 6 mm/r.
Up Tool Post (A Quarter of Longitudinal) 0.025 to 3 mm/r.
Metric Threads (Screw-pitch) 44 Kinds; Range: 1 TO 120 mm
Whitworth Threads 37 Kinds; Range: 30 TO 1+1/8 teeth/inch
Module Threads 46 KINDS; Range: 0.5 TO 60 mm
Rapid Traverse
Saddle 3,740mm/min
Cross Slide 1,840 mm/min
Top Slide 935 mm/min
Travel of Cross Slide 520 mm
Travel of Tool Post 300 mm
Diameter of Tailstock Sleeve 160 mm
Taper of Tailstock Sleeve METRIC NO. 80
Max. Movement of Tailstock Sleeve 300 mm
Taper Turning
Max. Cutting Length 300 mm
Taper Turning ±1:4
Power of Main Power 22KW
Power of Rapid Motor 1.5 KW
Power of Pump Motor 0.55 KW
Power of Cooling Motor 0.15 KW
Electrical Power AS USER’S NEED
Net Dimension of the Machine 5,100×2,000×1,790 mm
Packing Dimension of the Machine 5,360×2,120×2,280 mm
N. W./G. W. 11,000 KG; 15,600 KG





Photos

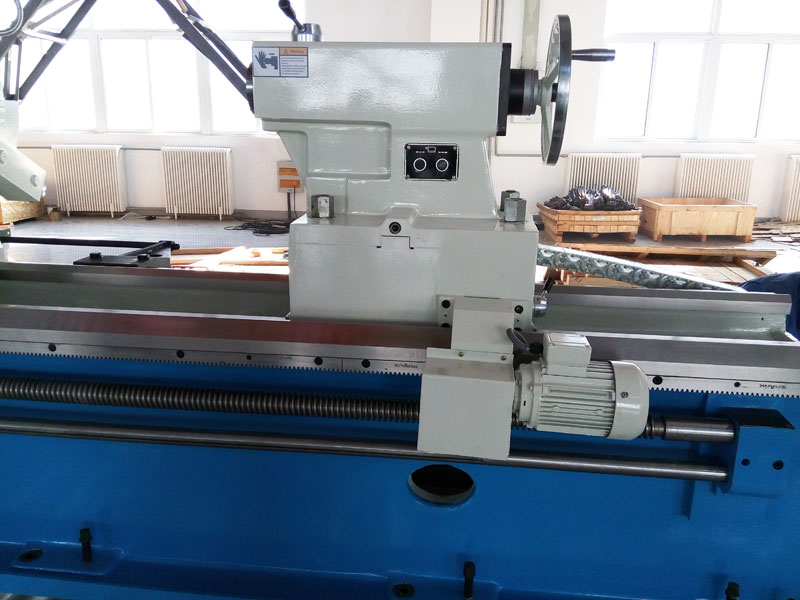

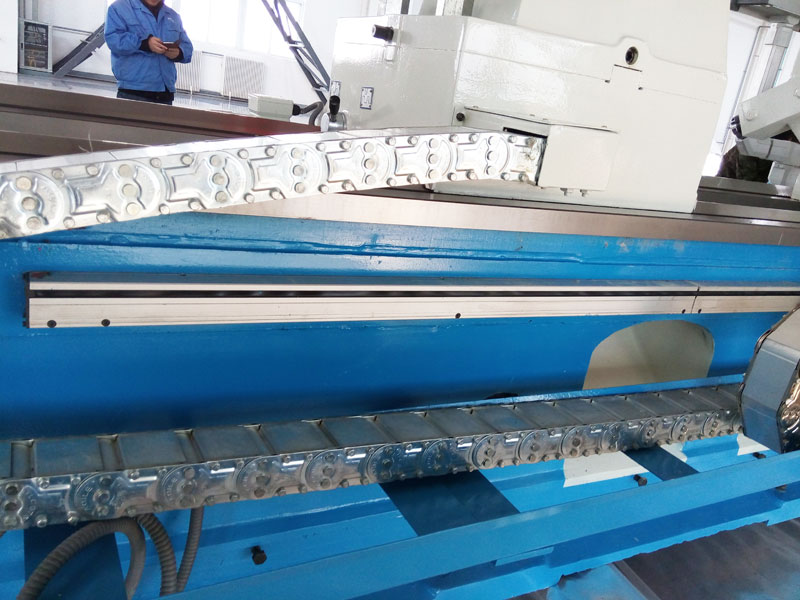

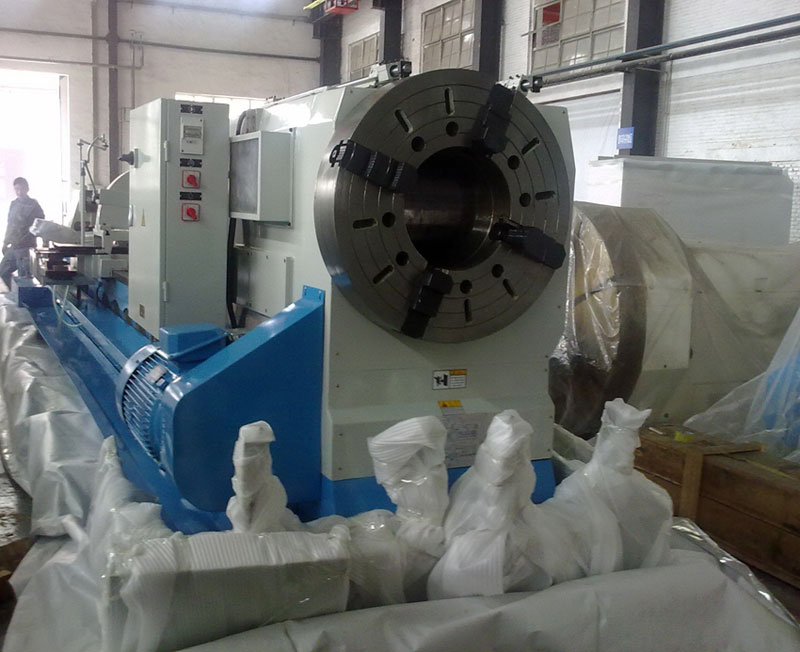

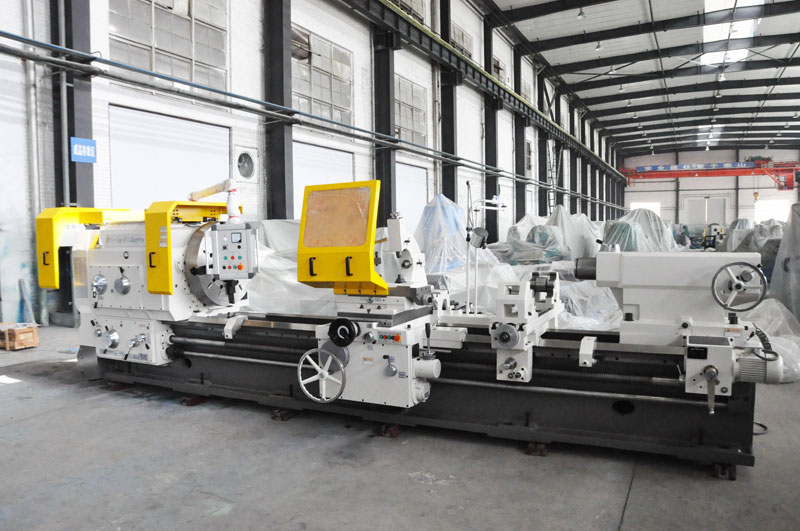

CW6636 Universal Horizontal Pipe Thread Lathe Machine (2)





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the products. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.

  • The pipe thread lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the pipe thread lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the pipe threading lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the pipe thread lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the pipe thread lathe machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
