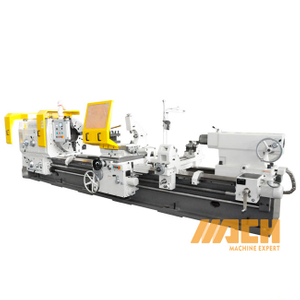

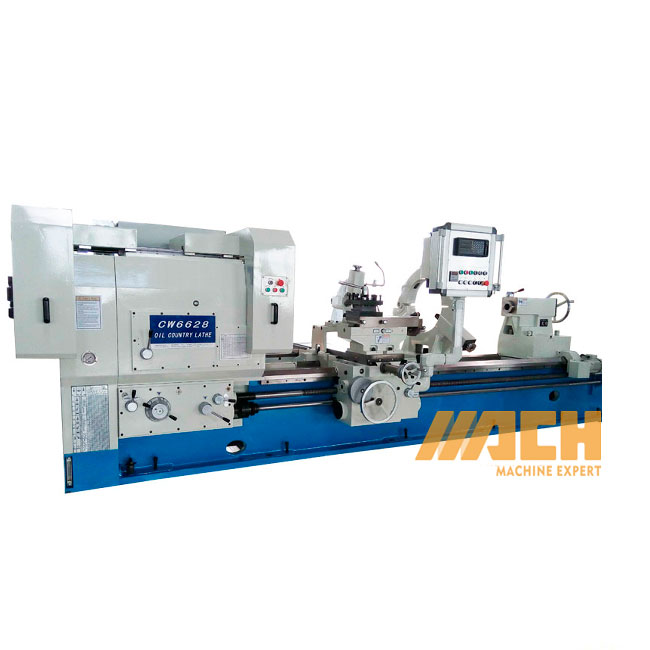

CW6628 Horizontal Oil Country Lathe Machine Pipe Threading Lathe

pipe threading lathe
Minimum Order Quantity: 1

Color:
Quantity:
  • CW6628
  • MACH
CW6628 Horizontal Oil Country Lathe Machine Pipe Threading Lathe

Specifications

Spindle Bore 280 mm
Swing Over Bed 1,000 mm
Swing Over Carriage 700 mm
Support Capacity Between Centers 4 TONS
Spindle Speed 18 STEPS, 5 TO 315 r.p.m.
Min. Clamping Diameter Of Chucks 100 mm
Metric Threads (Screw-Pitch) 44 Kinds; Range: 1 TO 120 mm
Whitworth Threads 37 Kinds; Range 30 TO 1+1/8 teeth/inch
Module Threads 46 KINDS; Range 0.5 TO 60 mm
Rapid Traverse
Saddle 3,740 mm/min
Cross SLIDE 1,840 mm/min
TOP Slide 935 mm/min
Travel Of Cross Slide 600 mm
Travel Of Tool Post 250 mm
Diameter Of Tailstock Sleeve 120 mm
Taper Of Tailstock Sleeve MORSE NO. 6#
Max. Movement Of Tailstock Sleeve 300 mm
Taper Turning
Max. Cutting Length 600 mm
Taper Turning ±1:4
Power Of Main Power 18.5 KW
Power Of Rapid Motor 1.5 KW
Power Of Pump Motor 0.55 KW
Power Of Cooling Motor 0.15 KW




Photos

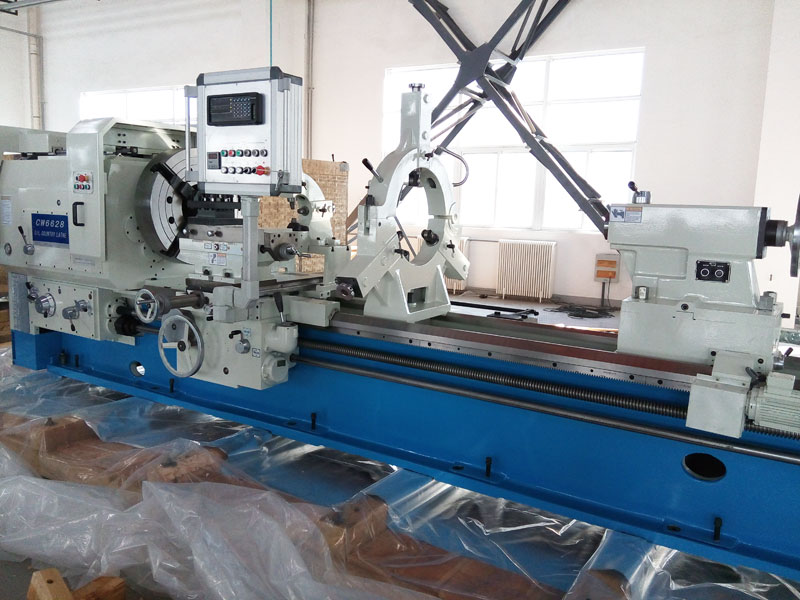

CW6628 Horizontal Oil Country Lathe Machine Pipe Threading Lathe (2)

CW6628 Horizontal Oil Country Lathe Machine Pipe Threading Lathe (3)





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the products. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.

  • The pipe threading lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the pipe threading lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the pipe threading lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the pipe threading lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the pipe threading lathe machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
