CW6263E CW6280E CW62100E Dalian DMTG Horizontal Universal Manual Turning Lathe

CW6263E CW6280E CW62100E Dalian DMTG Horizontal Universal Manual Lathe Machine
MOQ: 1

Quantity:
  • CW6263E CW6280E CW62100E
  • DMTG
  • 8458.1900
CW6263E CW6280E CW62100E Dalian DMTG Horizontal Universal Manual Turning Lathe



Specifications

Item

CW6263E

CW6280E

CW62100E

Max. swing over bed

630mm

800mm

1000mm

Max. swing over carriage

350mm

520mm

720mm

Center distance

1000mm 1500mm 2000mm 3000mm 4000mm 5000mm 6000mm

Width of gap

320mm

Swing over gap

800mm

1000mm

1230mm

Width of guide way

550mm

Spindle bore diameter

105mm (Optional:   130mm)

Spindle speed

(18 speeds) 7.5~1000rpm

Longitudinal feed

(64) 0.1~24.3mm/r

Cross feed

(64) 0.05~12.15mm/r

Rapid traverse speed

3.8m/min

Metric thread

(39)1~240mm

Inch thread

(26) 14~1TPI

Module thread

(53) 0.5~120mm

Diametrical pitch thread

(24) 28~1

Max. travel of cross slide

445mm

493mm

493mm

Travel of top slide

200mm

Main motor power

11kW

Rapid traverse motor power

1.1kW

Coolant pump motor power

0.09kW

Wooden box/Pallet packing

750mm

3490×1150×2080/3390×1100×1920

4450/3550kg

4600/3730kg

5000/4050kg

1000mm

3940×1150×2080/3840×1100×1920

4750/3550kg

4950/3730kg

5450/4050kg

1500mm

3940×1150×2080/4420×1100×1920

5250/2850kg

5450/4030kg

5850/4350kg

2000mm

4560×1150×2080/5200×1100×1920

Gross/Net weight

5650/4150kg

5850/4330kg

6250/4560kg

3000mm

5460×1150×2080/5270×1100×1920

6250/4650kg

6450/4830kg

6850/5150kg

4000mm

6520×1150×2080/7310×1100×1920

7150/5450kg

7800/6100kg

8200/6250kg

5000mm

7600×1150×2080/7350×1100×1920

7950/6250kg

8500/6450kg

8900/6750kg



Photos

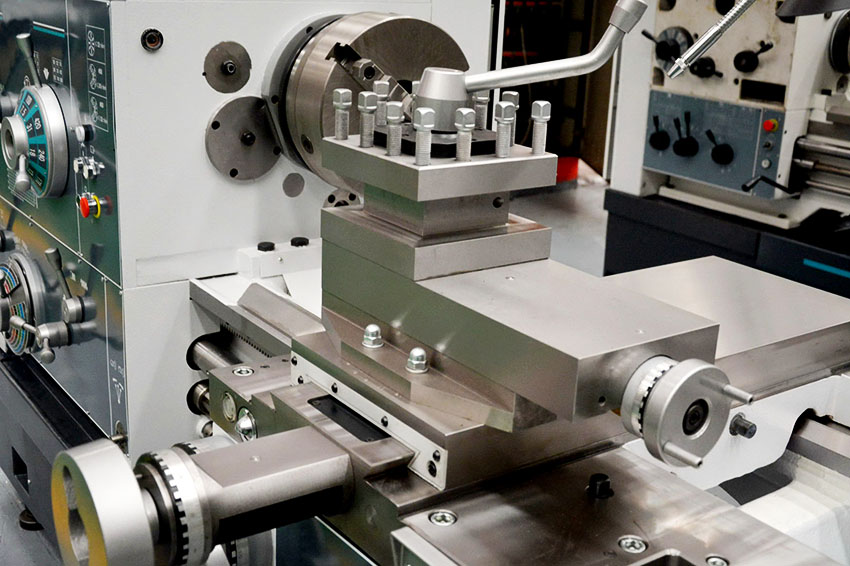

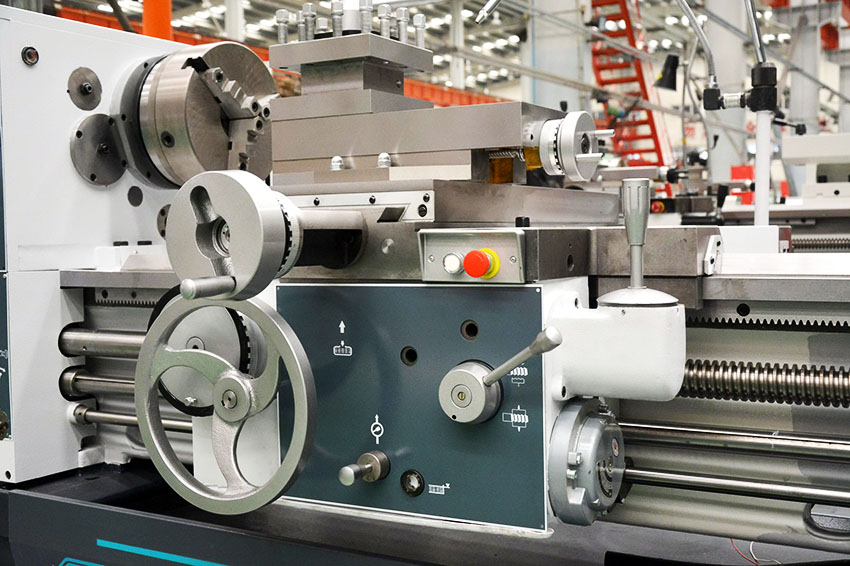

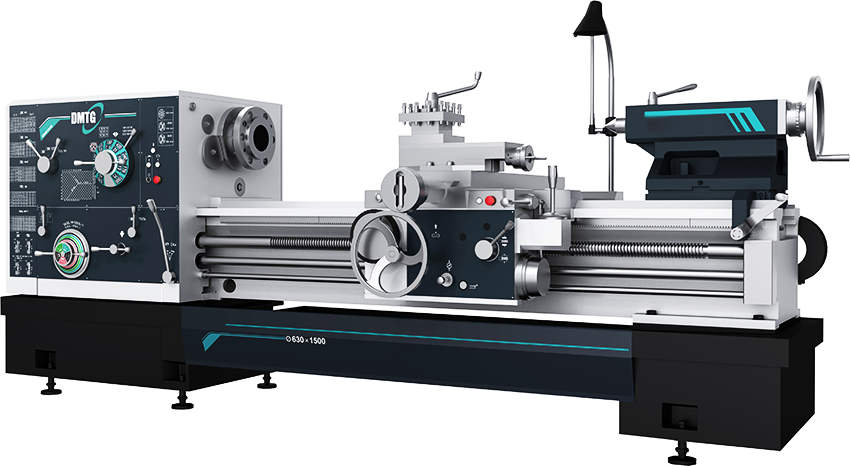

CW6263E


Standard-Parts

3 jaw chuck  ( 320mm on CW6263E, 400mm on CW6280E & CW62100E )

Steady rest; standard on the 3000mm and longer lathes

( 20-170mm on CW6263E, 40-250mm on CW6280E, 150-400mm on CW62100E )

Follow rest;  standard on the 3000mm and longer lathes

( 20-100mm on CW6263E & CW6280E, 20-160mm on CW62100E )

Opertor Manual

Chuck Guard

Toolpost Guard


Optional-Parts

130mm Large Spindle Bore

4 jaw chuck ( 500mm on CW6263E; 630mm on CW6280E & CW62100E )

Face plate

Drive plate

Quick change tool post ( German type only )

Taper Turning Attachment

2 Axis DRO factory installed

Large Steady rest (100-300mm; 160-350mm for CW6263E; 100-300mm; 200-400mm for CW6280E; 250-600mm for CW62100E)

Full splash guard for 1000mm; 1500mm; 2000mm and 3000mm

Live center M6

Spindle center

Spindle center sleeve

CE Electrics

Thread chasing dial

Foot brake ( 1000mm; 1500mm; 2000mm; 3000mm )

Anti-vibration pads ( set )
