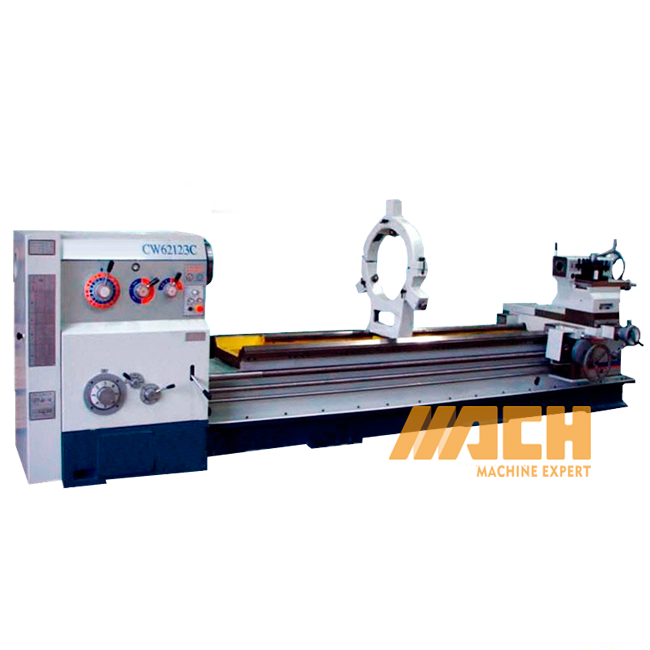

CW62123C Big Bore Universal Gap Bed Horizontal Metal Lathe

Big Bore Metal Lathe
MOQ: 1

Quantity:
  • CW62123C
  • MACH
CW62123C Big Bore Universal Gap Bed Horizontal Metal Lathe


Specifications

MODEL

CW62123C/6000

       Swing over bed

  1230mm

 Swing in bed

 1400mm

 Swing over cross slide

 700mm

 Distance between centers

 6000mm

 Spindle nose

C11 or D11

 Spindle bore

105mm or 130mm

 Spindle speeds

10-800/18 r/m/steps

 Cross slide travel

615mm

 Top rest travel

225mm

 Rapid traverse

Axe z :3200mm/min  Axe x :1400mm/min

Quill diameter

120mm

 Quill travel

270mm

 Quill taper

MT6

 Bed width

610mm

 Metric threads

 1-240mm / 53kinds

 Inch threads

30-2tpi / 31kinds

 Module threads

0.25-60mm / 46kinds

 Diametral pitch threads

60-0.5tpi / 47kinds

       Longitudinal feeds

0.07-16.72mm/r

 Main motor power

11kw(15hp)

 packing size(L*W*H)

8310× 1700×1980 (mm)

 GROSS WEIGHT

 9600kgs





Standard-Parts

3 Jaw Chuck (dia.380mm) & Flange
4 Jaw Chuck (dia. 500mm) & Flange
Dead centers
Steady rest ( 300-500mm)
Follow rest
Drive plate
Reduction sleeve
Maintenance kit
Foundation bolts/Nuts
Level blocks
Machine tool manual


Optional-Parts

Electric Turret
Electric Quill
Taper Turning Attachment Length 500mm
Taper Turning Attachment Length 750mm
Taper Turning Attachment Length 1000mm
Taper Turning Attachment Length 1200mm
Quick change Tool holder (Wedge type)
Quick change Tool holder (Europe style)
Chuck guard & Tool-post protection
Live center & center sleeve
Chasing Dial


Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the horizontal metal lathe. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The horizontal metal lathes are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the horizontal metal lathes are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the horizontal metal lathes were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the horizontal metal lathe, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the horizontal metal lathes within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
