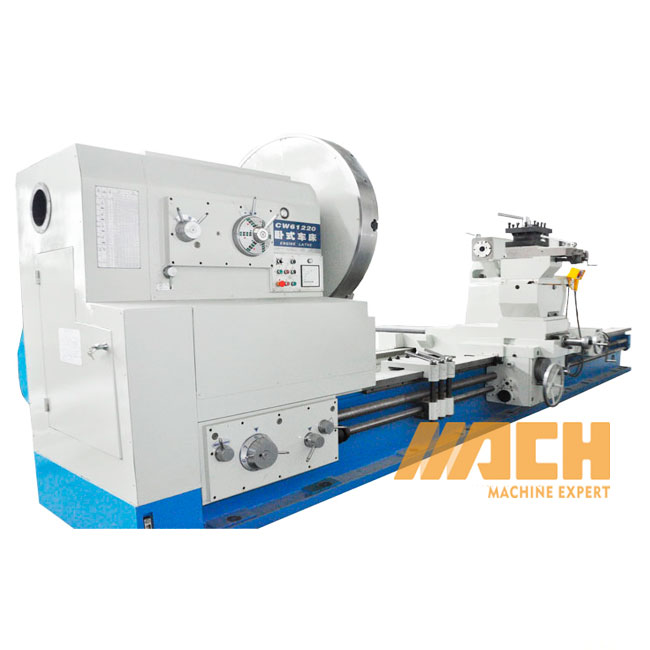

CW61220 Semi Automatic Metal Turning Heavy Duty Turning Machine

CW Series Heavy Duty Turning Machine
MOQ: 1

Color:
Quantity:
  • CW61220
  • MACH
CW61220 Semi Automatic Metal Turning Heavy Duty Turning Machine



Specifications



Specification unit CW61100E/125E/140E CW61140/160/180/200/220 CW61200/220/250
swing over bed mm 1000/1250/1400 1400/1600/1800/2000/2200 2000/2200/2500
swing over carriage mm 650/900/980 1000/1200/1400/1600/1800 1600/1800/2030
max. turning length mm 1500~16000 1500~16000 1500~16000
max. load between centers kg 6000/8000 15000/18000 8000/10000
bed width mm 755 1100 1100
spindle speed rpm 3.15~315 2~200 2.5~250
spindle motor kW AC22 DC49 AC30






Guarantee


Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the heavy duty turning machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The heavy duty turning machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the heavy duty turning machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the heavy duty turning machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the heavy duty turning machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the heavy duty turning machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
