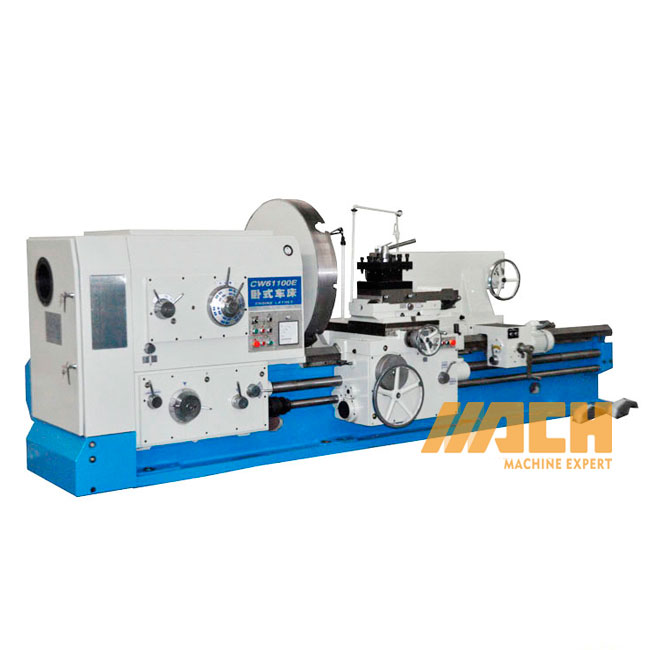

CW61100E Economic Horizontal Heavy Duty Lathe Machine

Heavy Duty Lathe
Minimum Order Quantity: 1

Color:
Quantity:
  • CW61100E
  • MACH
CW61100E Economic Horizontal Heavy Duty Lathe Machine

Specifications

MODEL

CW61100E

Swing over bed

1,000 mm

Max. Swing over carriage

650 mm

Distance between centers

3,000 mm

Max. Length to be turned

2,800 mm

Bedways width

755 mm

Max. Supporting weights of centers

8,000 kg

Spindle nose

iso a2-15

Spindle bore

130 mm

Spindle speeds

3.15 to 315 rpm, 21 step

Number of feeds and ranges

97

Longitudinal

0.64 to 12 mm

Cross slide

0.032 to 6 mm

Compound slide

0.016 to 3 mm

No. & range of metric threads

56 kinds, 1-120 mm

No. & range of inch threads

56 kinds, 30-1/4 t.p.i.

No. & range of module threads

56 kinds, 0.5-60

No. & range of diametric pitch’s

56 kinds, 60-0.5

Max. Travel of cross slide

520 mm

Max. Travel of compound

300 mm

Dia. Of tailstock sleeve

200 mm

Taper of tailstock sleeve

Morse no.6

Max. Movement of tailstock sleeve

300 mm

Power of main motor

22 kw

Power of rapid motor

1.5 kw

Power of pump motor

0.55 kw

Power of cooling motor

0.15 kw

Electrical power

as user’s need

Net overall dimension of the machine

6,100×1,810×1,790 mm

Packing dimension of the machine

6,360×1,950×2,280 mm

N. W. / G. W.

10,850 / 13,050 kgs

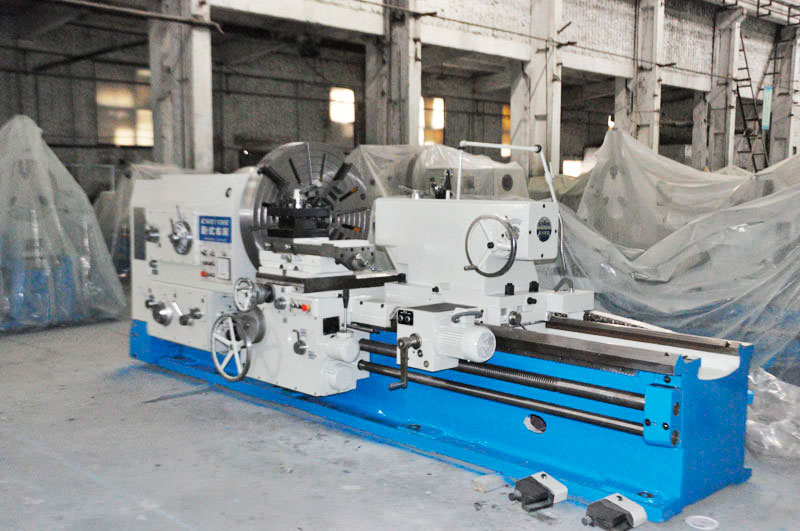

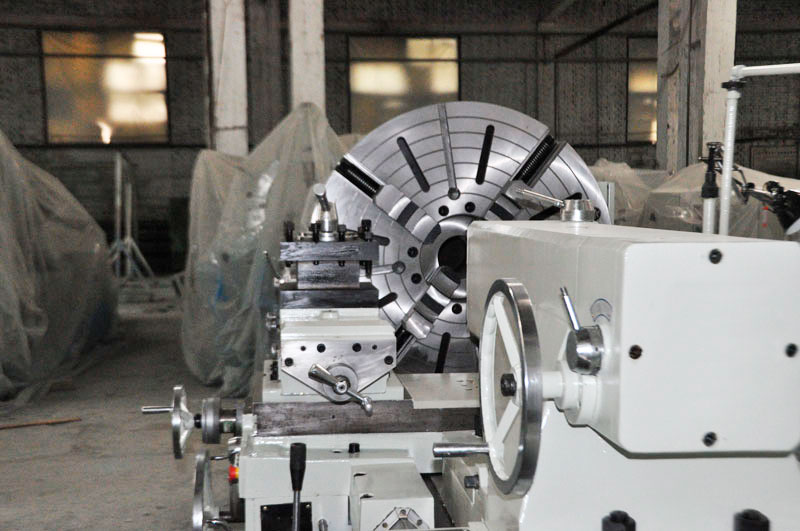

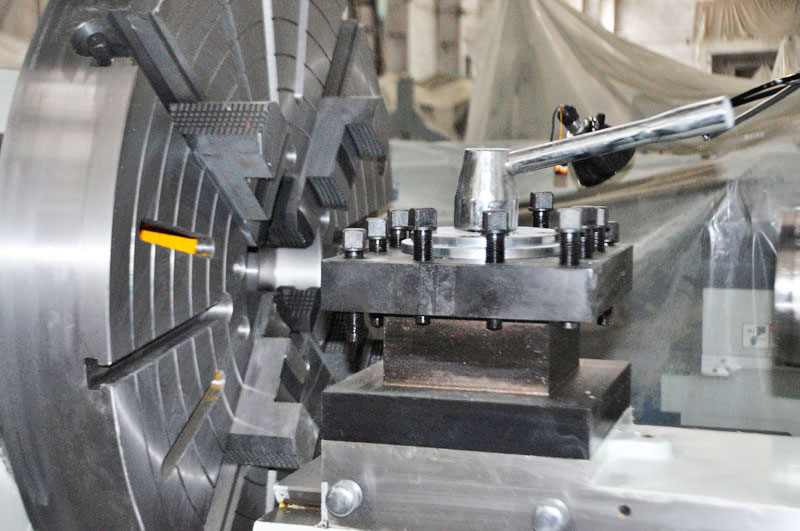

Photos
CW61100E Economic Horizontal Heavy Duty Lathe Machine (2)





Standard-Parts

4 jaw chuck, diameter of 1000 mm, 1 set

Steady rest, range 50 to 470 mm, 1 set

Follow rest, range 50 to 220 mm, 1 set

Dead center, 2 pcs

Reducing sleeve, 1 pc

Cooling system

Work light

Special tools

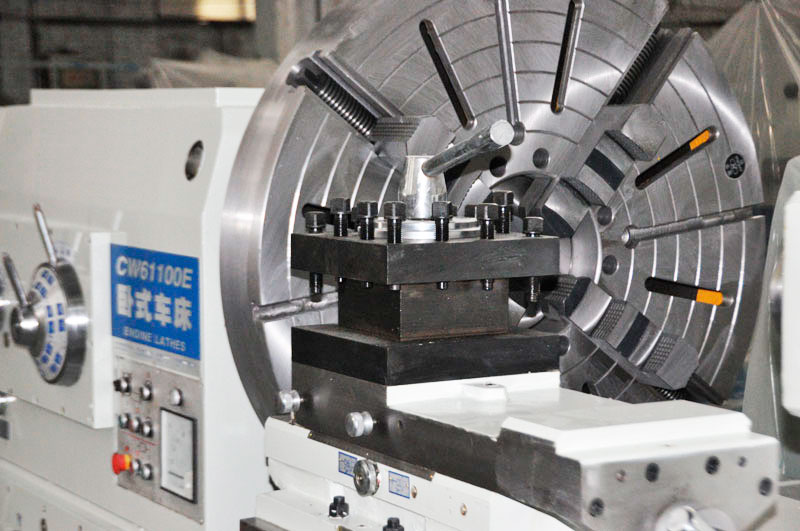

CW61100E Economic Horizontal Heavy Duty Lathe Machine (3)

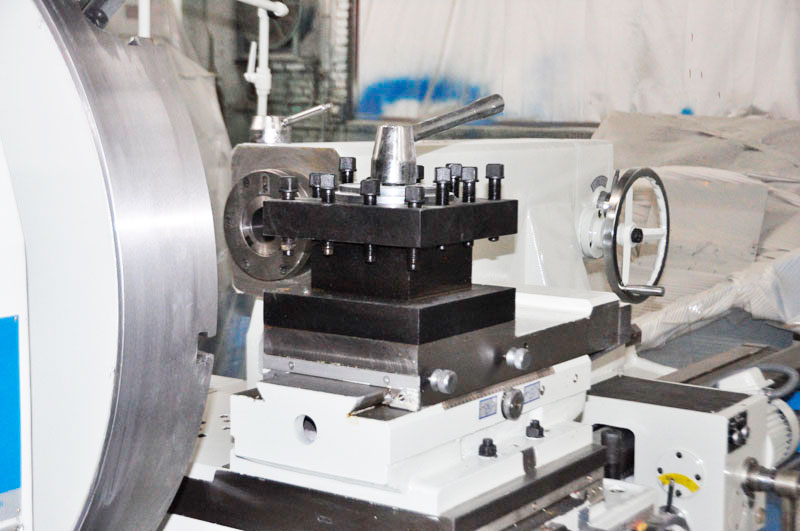

CW61100E Economic Horizontal Heavy Duty Lathe Machine (6)




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the heavy duty lathe . We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The heavy duty lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the heavy duty lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the heavy duty lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the heavy duty lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the heavy duty lathe machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
