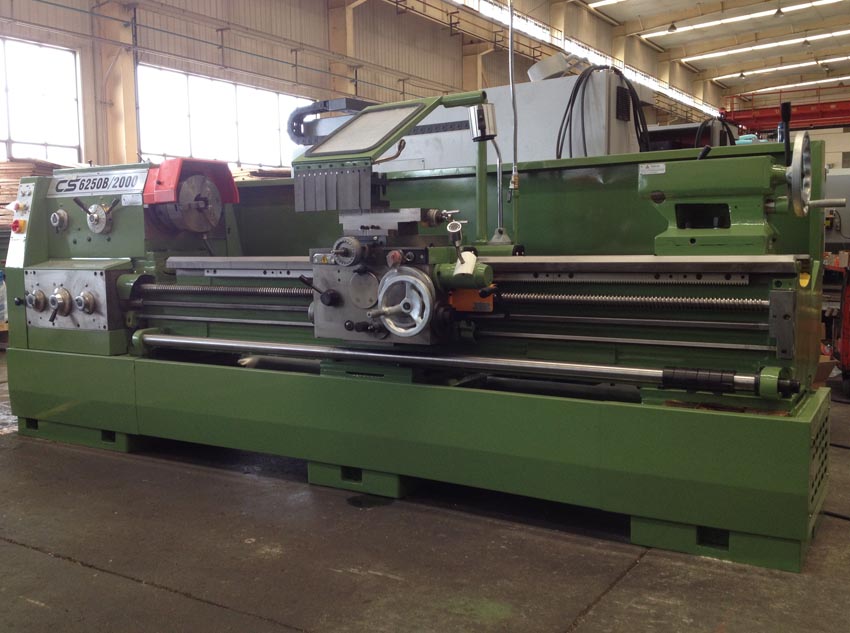

CS6250B Bochi CE Certificate High Precision Gap Bed Metal Lathe

Bochi Gap Bed Lathe
Minimum Order Quantity: 1

Color:
Quantity:
  • CS6250B
  • MACH
CS6250B Bochi CE Certificate High Precision Gap Bed Metal Lathe

features

1. It can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2. Threading Inch, Metric, Module and D.P.;
3. Perform drilling, boring and groove broaching;
4. Machine all kinds of flat stocks and those in irregular shapes;
5. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
6. Both Inch and Metric system are used on these series lathes; it’s easy for people from different measuring systems countries;
7. There are hand brake and foot brake for users to choose;
8. These series lathes operate on power supply of different voltages (220V380V420V) and different frequencies (50Hz60Hz).



Specifications


SPECIFICATIONS UNIT CS6240 CS6250B CS6266B
Capacity Maximum swing diameter over bed mm Φ400 Φ500 Φ660
Maximum swing diameter in gap mm Φ630 Φ710 Φ870
Maximum swing diameter over slides mm Φ220 Φ300 Φ420
Maximum workpiece length mm 750/1000/1500/2000/3000 750/1000/1500/2000/3000 1000/1500/2000/3000
Spindle Spindle bore diameter mm Φ52 Φ82 Φ82
Type of spindle nose no ISO 702/III NO.6 bayonet lock ISO 702/II NO.8 com-lock type ISO 702/II NO.8 com-lock type
Spindle speed rpm 24 steps 9-1600 24 steps 9-1600 24 steps 9-1600
Spindle motor power KW 7.5 7.5 7.5
Tailstock Diameter of quill mm Φ75 Φ75 Φ75
Maximum travel of quill mm 150 150 150
Taper of quill (Morse) MT 5 5 5
Turret Tool O.D. size mm 25X25 25X25 25X25
Feed Maximum X travel mm 145 145 145
Maximum Z travel mm 320 320 320
X feed range mm/r 93 kinds 0.028-6.43 93 kinds 0.028-6.43 93 kinds 0.028-6.43
Z feed range mm/r 93 kinds 0.012-2.73 93 kinds 0.012-2.73 93 kinds 0.012-2.73
Metric threads mm 48 kinds 0.5-224 48 kinds 0.5-224 48 kinds 0.5-224
Inch threads t.p.i 48 kinds 72-1/4 48 kinds 72-1/4 48 kinds 72-1/4
Module threads πmm 42 kinds 0.5-112 42 kinds 0.5-112 42 kinds 0.5-112
Diametric pitch threads t.p.i.π 42 kinds 56-1/4 42 kinds 56-1/4 42 kinds 56-1/4
Other Cooling pump motor power KW 0.06 0.06 0.06
Length mm 2382/2632/3132/3632/4632 2382/2632/3132/3632/4632 2632/3132/3632/4632
Width mm 975 975 1050
Height mm 1230 1230 1350
Weight Kg 1795/2050/2250/2450/2850 2050/2100/2300/2500/2900 2400/2600/2800/3000

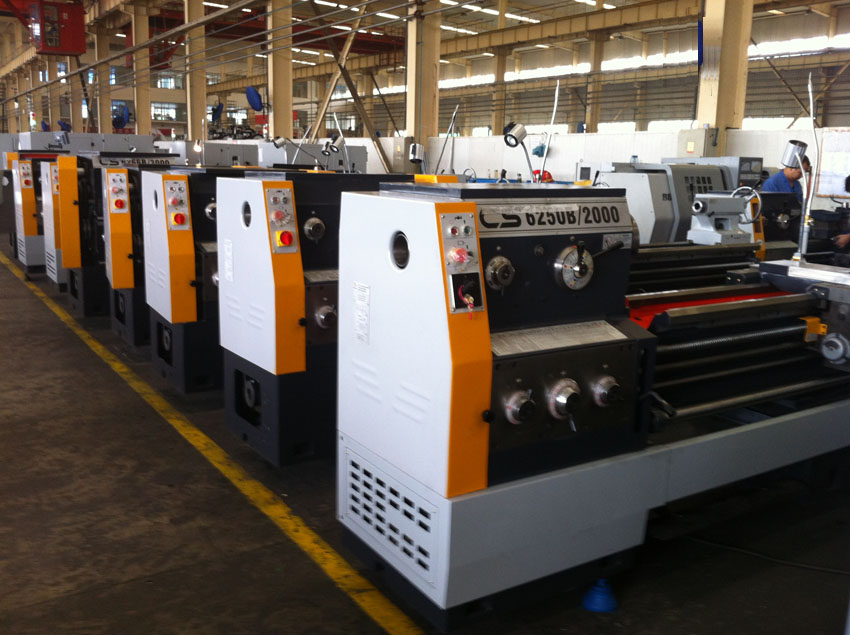

Photos

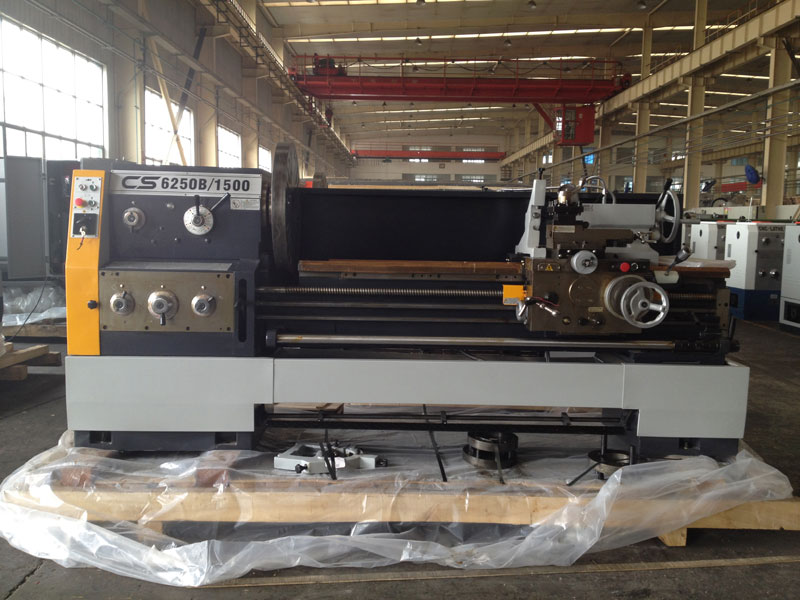

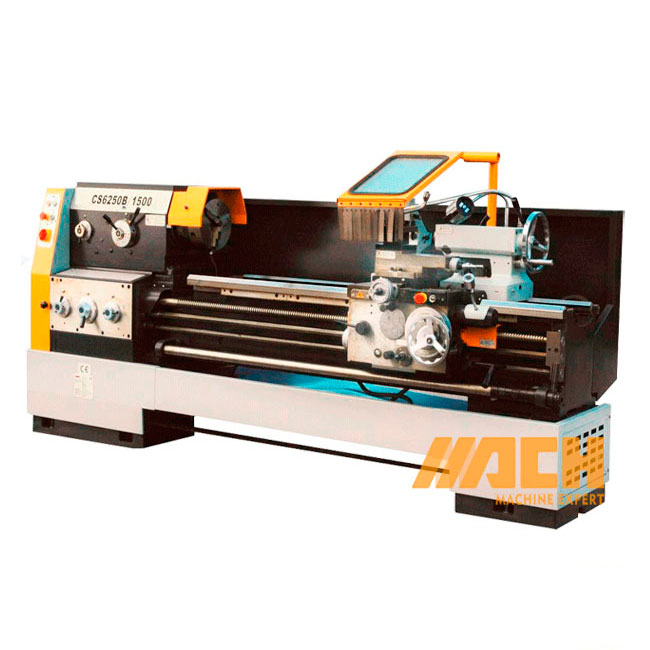

CS6250Bx1500

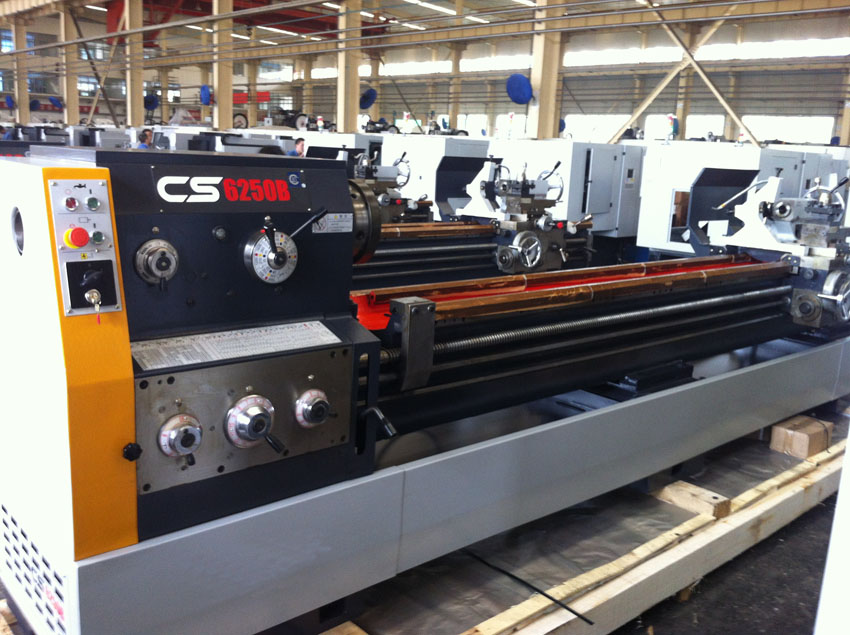

CS6250B-Green





Standard-Parts

3 Jaw Chuck and Adapter

4 Jaw Chuck and Adapter

Drive Plate

Face Plate

4-Way Tool Post

Stead Rest 120-260mm

Follow Rest

Drive Plate

Foot Brake

Full-Length Splash Guard ( Short Type on 3M Lathe )

Longitudinal Mechanical Stop ( without on 3M Lathe )

Halogen Light

All Standard Accessories





Optional-Parts

Taper Turning Attachment

Thread Chasing Dial

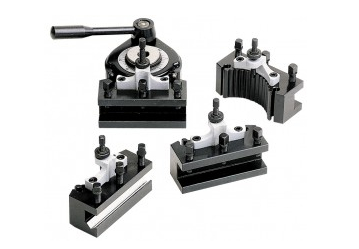

Quick Change Tool Post ( American Type or European Type )

SINO 2 Axis DRO

Live Center





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the lathe . We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The metal lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the metal lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the metal lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the metal lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the metal lathe machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
