CKE6163Z Dalian DMTG Economic Horizontal Torno CNC Lathe

Dalian DMTG Torno CNC Lathe Model; CKE6163Z
MOQ: 1

Quantity:
  • CKE6163Z
  • DMTG
  • 5458.1100

CKE6163Z Dalian DMTG Economic Horizontal Torno CNC Lathe






features

1. Construction casting molded with resin sand of bed, headstock, saddle plinth, ect;

2. Turcite-B coated on mating surfaces between saddle and guideways;
3. Precision ballscrew, high rigidity precision compound bearings ensure accurate positioning and efficient driving of cnc lathe. Centralized oil lubricator providing forced automatic lubrication onto ballscrew, mating surfaces;
4. High spindle speed with wide variable speed ranges. Low noise 80db, CKE-Zseries cnc lathe machine adopting the smart automatic gear changing mechanism enables automatic speed changes among low, medium, high speed ranges without turning off the cnc lathe machine. CKE-i series cnc lathe machine with independent spindle strcture and frequency converted motor or servo motor enables high spindle speed and stepless spindle changing;
5. Flexible control panel enables convenient tool setting for the cnc lathe;
6. Popular full enclosed guards with interlock offer a waterproof and chip-free environment;
7. Vertical 4-position toolpost, horizontal 6-position toolpost, quick change toolpost, etc are available for your selection for this cnc lathe machine;
8. Optional, pneumatic, hydraulic chuck and tailstock are available for this cnc lathe machine;
9. FANUC, SIEMENS, etc control systems can be appointed E-handwheel function can also be equipped.







Specifications

Model: CKE6163Z

Capacities

Metric

Maximum Swing Over Bed

630mm

Width of Bed

550mm

Maximum Swing Over Cross Slide

320mm

Maximum Workpiece Length

1000/1500/2000/3000/4000/5000mm

Travel

Metric

X Axis

320mm

Z Axis

2735mm

Spindle

Metric

Chuck Size

320mm

Spindle Through Bore

100mm

Spindle Nose

D11

Spindle Speed Steps

4

Spindle Speed Range 1

40 – 278rpm

Spindle Speed Range 2

71 – 310rpm

Spindle Speed Range 3

124 – 556rpm

Spindle Speed Range 4

222 – 1000rpm

Spindle Motor Power

11kw

Tool Post (Standard)

Metric

Number of Tool Stations

4

Axis

Vertical

Index Time (Adjacent Tool)

2.9 s

Tool Post (Optional)


Number of Tool Stations

6

Axis

Horizontal

Index Time (Adjacent Tool)

1.1 s

Accuracy

Metric

Positioning Accuracy, X axis (JIS)

0.0112mm

Positioning Accuracy, Z axis (JIS)

0.0168mm

Repeatability, X axis (JIS)

0.0043mm

Repeatability, Z axis (JIS)

0.0074mm

Repeatability of Tool Post (VDI)

0.008mm

Rapid Traverse Rates

Metric

X Axis

4m/min

Z Axis

8m/min

Tailstock

Metric

Quill Diameter

100mm

Quill Travel

240mm

Quill Inside Taper

MT6

Machine Dimensions

Metric   ( For Model: CKE6163Z/3000)

Machine Length

5410mm

Machine Width

2000mm

Machine Height

1800mm

Total Weight

5600 kg

Power Requirements

27 KVA



Photos

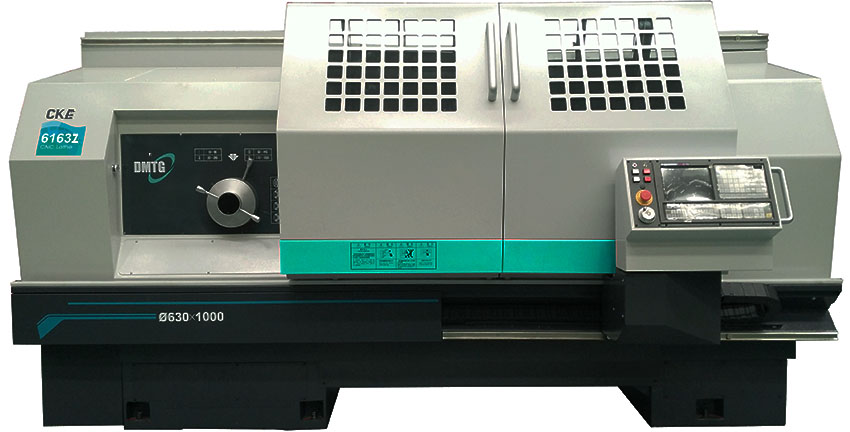

CKE6163Z



Standard-Parts

Inverter Motor Control Spindle (Automatic changes)
Concentrated Lubrication Device (Can be controlled by Programs)
Headstock Independent Lubricate System
Machine Light
Coolant System
3-jaw chuck 400mm
Tool Kit
Oil Gun
90 Degree Movable Control Console
Operation Manual
Vertical 4-Station Electric Turret

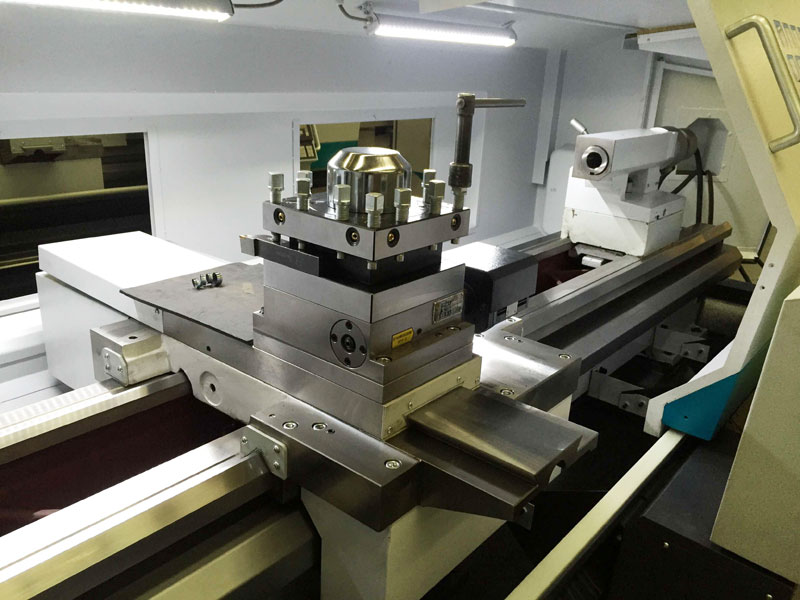

CKE6150Z DMTG CNC Machine Tool Flat Bed CNC Lathe Machine (4)

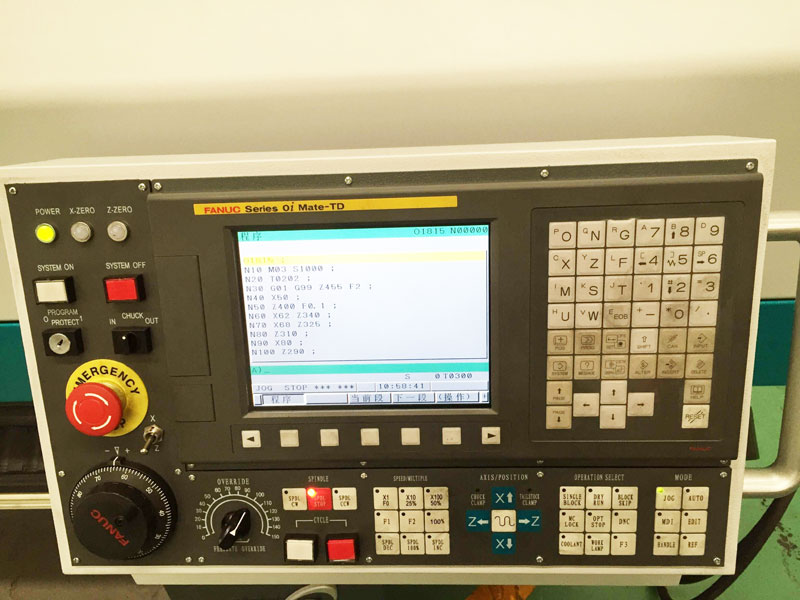

CKE6150Z DMTG CNC Machine Tool Flat Bed CNC Lathe Machine (5)

CKE6150Z DMTG CNC Machine Tool Flat Bed CNC Lathe Machine (6)



Optional-Parts

Door interlock

Chuck guard with switch

CE electrics

Elecric   Hand wheel (Two ) and manual start-up joystick

4 jaw chuck diameter: 630mm

Horizontal  8-Station Turret ( coolant through )

315mm hydraulic chuck (through-hole)

Hydraulic tailstock  for CKE6163

Hydraulic station for CKE6163

Steady rest Dia:20-170mm

Steady rest Dia:150-400mm

Live Center M6 for   CKE6163

Anti-vibration pads (1 set)

Germany type quick change   toolpost to replace standard 4 station electric turret
