CKE6150Z Dalian DMTG Horizontal Flat Bed Economic CNC Lathe Machine

Flat Bed CNC Lathe Machine
MOQ: 1

Quantity:
  • CKE6150Z
  • DMTG
  • 8458.1100

CKE6150Z Dalian DMTG Horizontal Flat Bed Economic CNC Lathe Machine






features

1. Construction casting molded with resin sand of bed, headstock, saddle plinth, ect;

2. Turcite-B coated on mating surfaces between saddle and guideways;
3. Precision ballscrew, high rigidity precision compound bearings ensure accurate positioning and efficient driving of cnc lathe. Centralized oil lubricator providing forced automatic lubrication onto ballscrew, mating surfaces;
4. High spindle speed with wide variable speed ranges. Low noise 80db, CKE-Zseries cnc lathe machine adopting the smart automatic gear changing mechanism enables automatic speed changes among low, medium, high speed ranges without turning off the cnc lathe machine. CKE-i series cnc lathe machine with independent spindle strcture and frequency converted motor or servo motor enables high spindle speed and stepless spindle changing;
5. Flexible control panel enables convenient tool setting for the cnc lathe;
6. Popular full enclosed guards with interlock offer a waterproof and chip-free environment;
7. Vertical 4-position toolpost, horizontal 6-position toolpost, quick change toolpost, etc are available for your selection for this cnc lathe machine;
8. Optional, pneumatic, hydraulic chuck and tailstock are available for this cnc lathe machine;
9. FANUC, SIEMENS, etc control systems can be appointed E-handwheel function can also be equipped.





Specifications

Capacities

Metric

Maximum Swing Over Bed

500mm

Width of Bed

400mm

Maximum Swing Over Cross Slide

280mm

Maximum Workpiece Length

750/1000/1500/2000mm

Travel

Metric

X Axis

280mm

Z Axis

680/930/1430/1930mm

Spindle

Metric

Chuck Size

250mm

Spindle Through Bore

82mm

Spindle Nose

D8

Spindle Speed Steps

3

Spindle Speed Range 1

7 – 135rpm

Spindle Speed Range 2

30 – 550rpm

Spindle Speed Range 3

110 – 2200rpm

Spindle Motor Power

7.5kw

Tool Post (Standard)

Metric

Number of Tool Stations

4

Axis

Vertical

Index Time (Adjacent Tool)

2.4 s

Tool Post (Optional)


Number of Tool Stations

6

Axis

Horizontal

Index Time (Adjacent Tool)

3 s

Accuracy

Metric

Positioning Accuracy, X axis JIS

0.0112mm

Positioning Accuracy, Z axis JIS

0.0147mm

Repeatability, X axis JIS

0.0043mm

Repeatability, Z axis JIS

0.0058mm

Repeatability of Tool Post (VDI)

0.008mm

Rapid Traverse Rates

Metric

X Axis

6m/min

Z Axis

10/min

Tailstock

Metric

Quill Diameter

75mm

Quill Travel

150mm

Quill Inside Taper

MT5

Machine Dimensions

Metric

Machine Length

2580/2830/3330/3830mm

Machine Width

1750mm

Machine Height

1620mm

Total Weight

2550/2600/2700/2800 kg

Power Requirements

24KVA


Photos

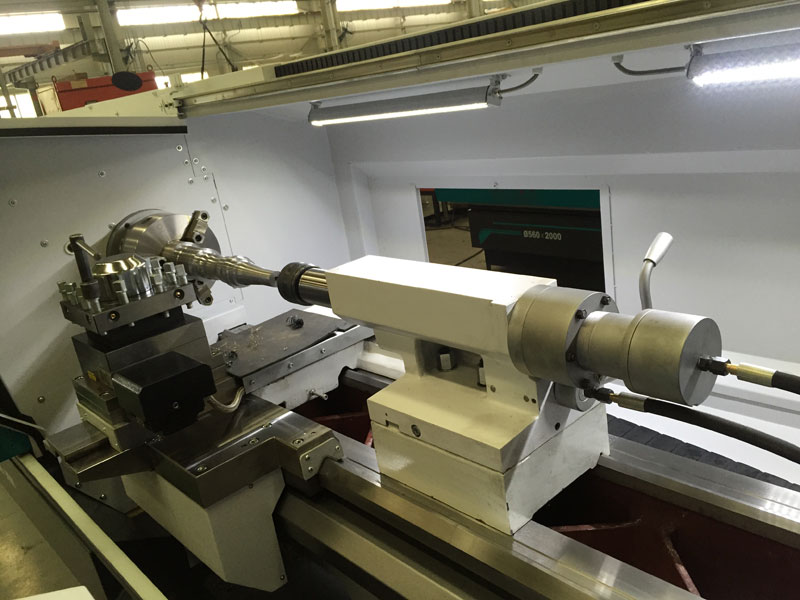

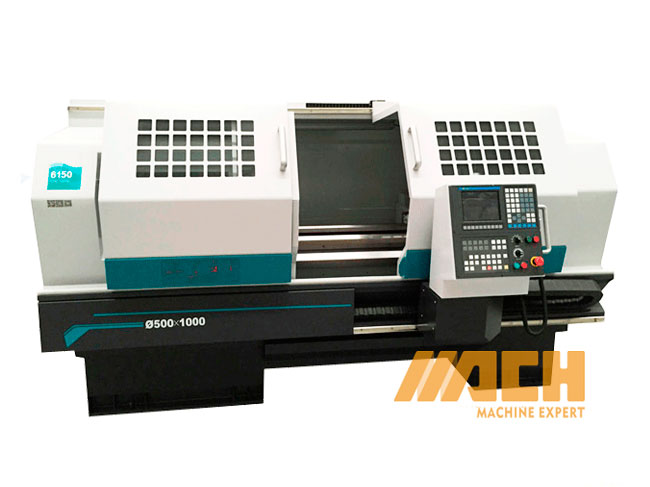

CKE6150Z DMTG CNC Machine Tool Flat Bed CNC Lathe Machine




Standard-Parts

Servo Spindle Motor
Concentrated Lubrication Device (Can be controlled by Programs)
Headstock Independent Lubricate System
Machine Light
Coolant System
3-jaw chuck
Tool Kit
Oil Gun

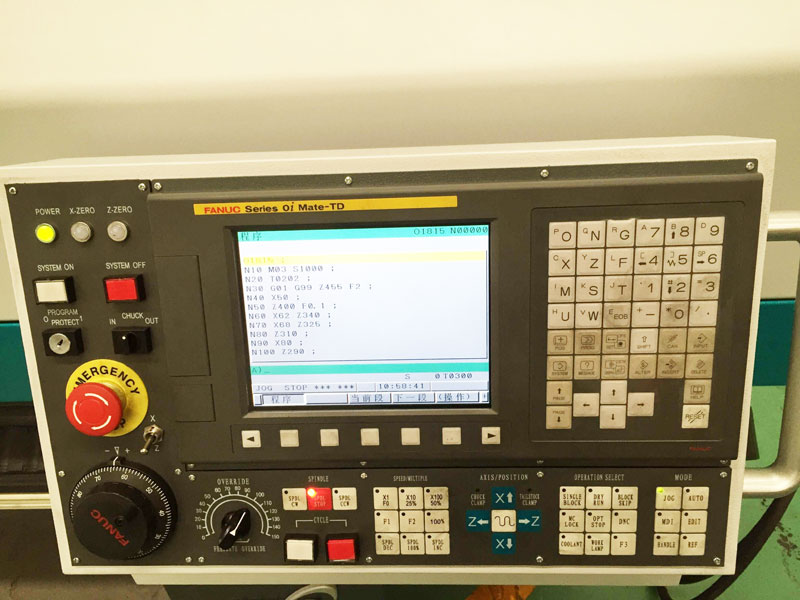

90 Degree Movable Control Console
Operation Manual

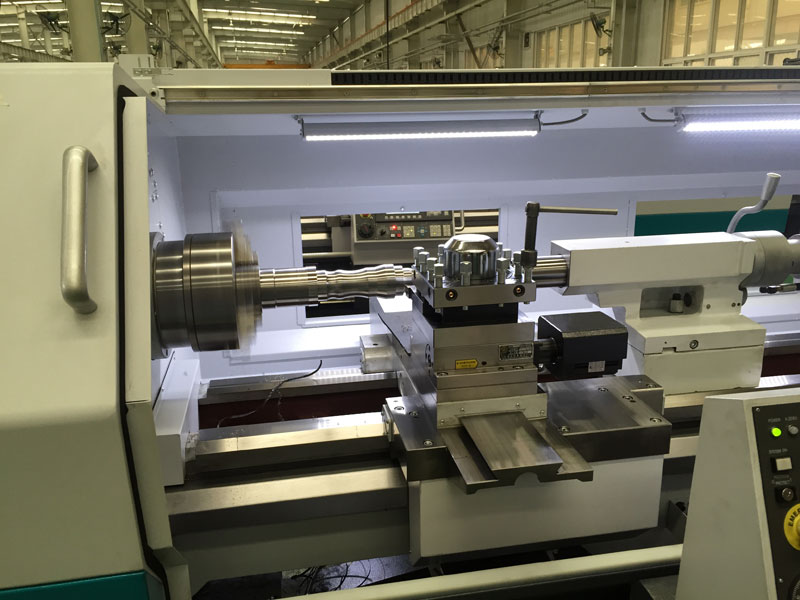

Vertical 4-Station Electric Turret


CKE6150Z DMTG CNC Machine Tool Flat Bed CNC Lathe Machine (4)

CKE6150Z DMTG CNC Machine Tool Flat Bed CNC Lathe Machine (5)

CKE6150Z DMTG CNC Machine Tool Flat Bed CNC Lathe Machine (6)







Optional-Parts

Door interlock

Chuck guard with switch

CE electrics

Electric Hand wheel (Two) and manual start-up   joystick

Horizontal 6-Station   Turret on CKE6150

Horizontal 8-Station Turret   on CKE6150

Taiwan 250mm hydraulic chuck   (through-hole)

Hydraulic tailstock    for CKE6150

Hydraulic station for   CKE6150

Steady rest     Dia:100-200mm

Live Center M5 for   CKE6150

Anti-vibration pads (1 set)

Germany type quick change   toolpost to replace standard 4 station electric turret



Guarantee


Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cnc lathe machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The cnc lathe  machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.

  • When the cnc lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.

  • During this period of one year warranty , if the cnc lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.

  • During this period of warranty, if there is something wrong with the cnc lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.

  • After the warranty, we charge only cost price for maintaining the cnc lathe machines within three years.

  • Other after-sale terms can be agreed by buyer and seller in addition.
