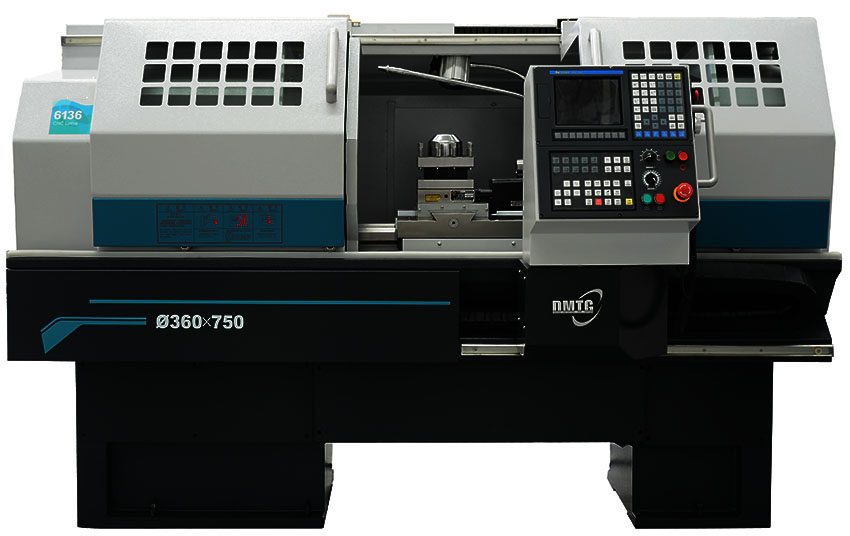

CKE6136Z CKE6140Z Dalian DMTG Horizontal Flat Bed CNC Lathe Machine

Dalian DMTG Flat Bed CNC Lathe Model: CKE6136Z

Quantity:
  • CKE6136Z; CKE6140Z
  • DMTG
  • 8458.1100

CKE6136Z  CKE6140Z Dalian DMTG Horizontal Flat Bed CNC Lathe






features

1. Construction casting molded with resin sand of bed,headstock,saddle plinth,ect;

2. Turcite-B coated on mating surfaces between saddle and guideways;
3. Precision ballscrew,high rigidity precision compound bearings ensure accurate positioning and efficient driving of cnc lathe.Centralized oil lubricator providing forced automatic lubrication onto ballscrew,mating surfaces;
4. High spindle speed with wide variable speed ranges.Low noise 80db,CKE-Zseries cnc lathe machine adopting the smart automatic gear changing mechanism enables automatic speed changes among low,medium,high speed ranges without turning off the cnc lathe machine.CKE-i series cnc lathe machine with independent spindle strcture and frequency converted motor or servo motor enables high spindle speed and stepless spindle changing;
5. Flexible control panel enables convenient tool setting for the cnc lathe;
6. Popular full enclosed guards with interlock offer a waterproof and chip-free environment;
7. Vertical 4-p toolpost,horizontal 6-p toolpost,quick change toolpost,etc are available for your selection for this cnc lathe machine;
8. Optional,pneumatic,hydraulic chuck and tailstock are available for this cnc lathe machine;
9. FANUC,SIEMENS control systems can be appointed E-handwheel function can also be equipped.







Specifications

Model

CKE6136Z

CKE6140Z

Capacities



Maximum Swing Over Bed

360mm

400mm

Width of Bed

300mm

300mm

Maximum Swing Over Cross Slide

180mm

200mm

Maximum Workpiece Length

750 / 1000mm

750 / 1000mm

Travel

Metric

Metric

X Axis

205mm

225mm

Z Axis

620/870mm

620/870mm

Spindle

Metric

Metric

Chuck Size

200mm

225mm

Spindle Through Bore

52mm

52mm

Spindle Nose

A2-6 / D6

A2-6/D6

Spindle Speed Steps

2

2

Spindle Speed Range 1

20 – 650 rpm

20-650 rpm

Spindle Speed Range 2

75 – 2500 rpm

75-2500 rpm

Spindle Motor Power

5.5 kw

5.5 kw

Tool Post (Standard)

Metric

Metric

Number of Tool Stations

4

4

Axis

Vertical

Vertical

Index Time (Adjacent Tool)

2.4 s

2.4 s

Tool Post (Optional)



Number of Tool Stations

6

6

Axis

Horizontal

Horizontal

Index Time (Adjacent Tool)

3 s

3 s

Accuracy

Metric

Metric

Positioning Accuracy, X axis (JIS)

0.0112mm

0.0112mm

Positioning Accuracy, Z axis (JIS)

0.0147mm

0.0147mm

Repeatability, X axis (JIS)

0.0043mm

0.0043mm

Repeatability, Z axis (JIS)

0.0058mm

0.0058mm

Repeatability of Tool Post (VDI)

0.008mm

0.008mm

Rapid Traverse Rates

Metric

Metric

X Axis

4 m/min

4 m/min

Z Axis

5 m/min

5 m/min

Tailstock

Metric

Metric

Quill Diameter

63MM

63MM

Quill Travel

130mm

130mm

Quill Inside Taper

MT4

MT4

Machine Dimensions

Metric

Metric

Machine Length

2300 / 2550mm

2300 / 2550mm

Machine Width

1480mm

1480mm

Machine Height

1520mm

1520mm

Total Weight

1600 / 1650 kg

1660 / 1700 kg

Power Requirements

16KVA

16KVA





Photos

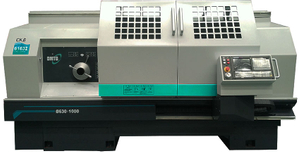

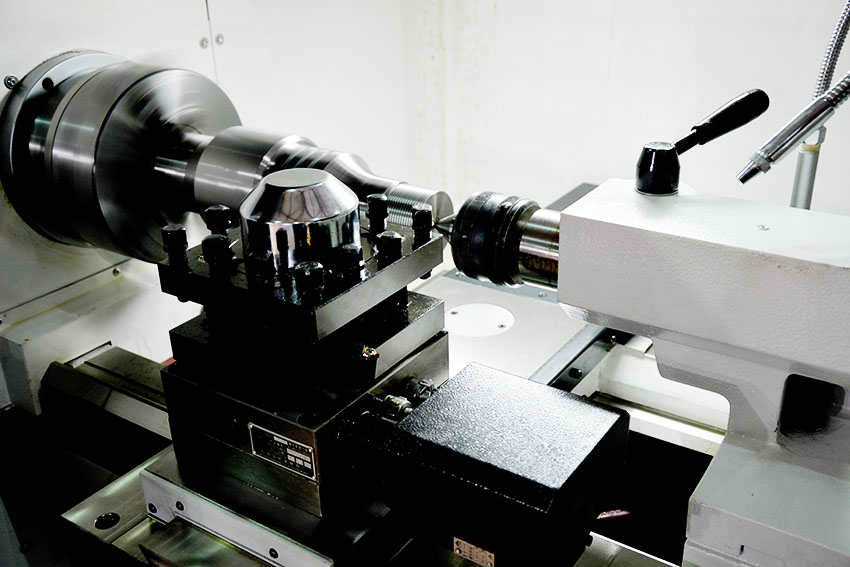

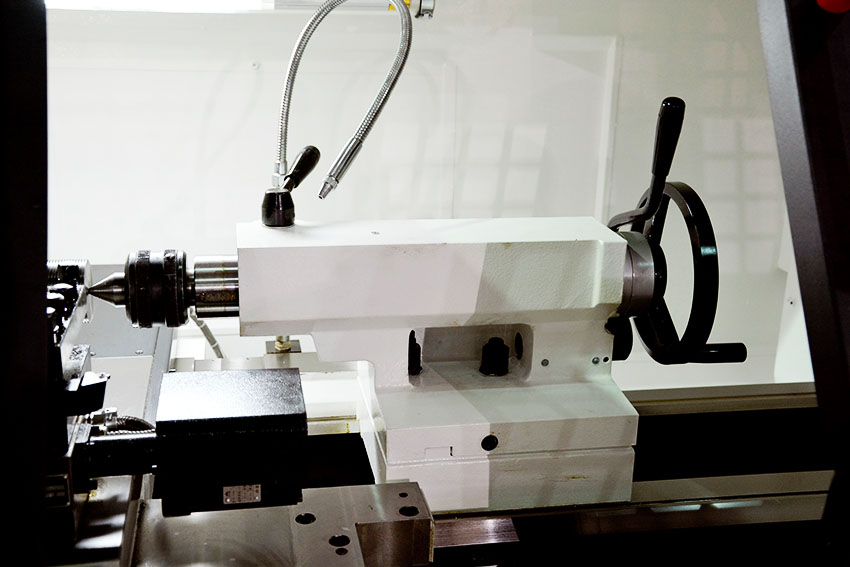

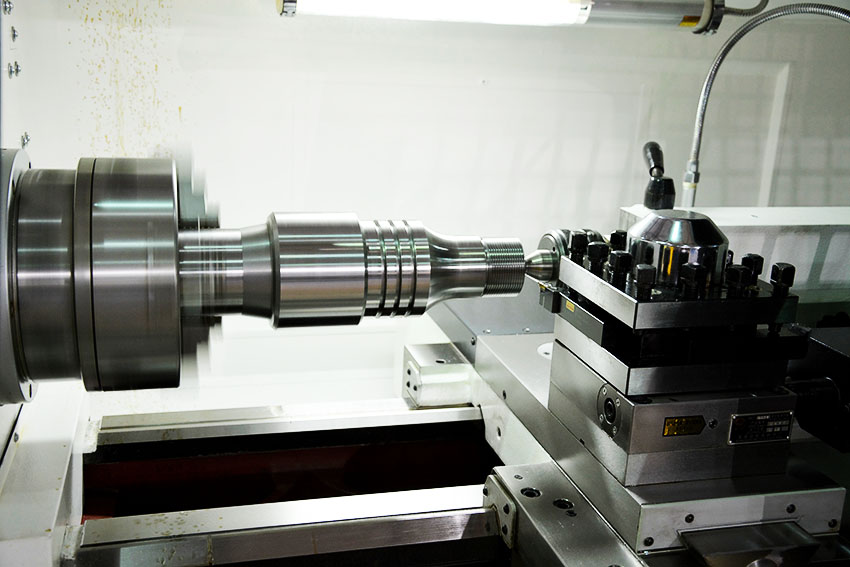

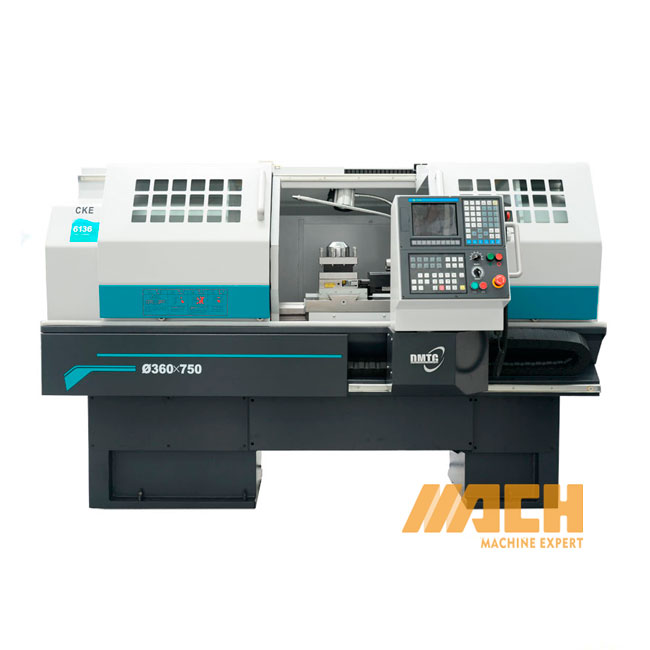

CKE6136Z DMTG Automatic Horizontal Flat Bed CNC Lathe



Standard-Parts

Standard accessories

Servo Spindle Motor

Concentrated Lubrication Device (Can be controlled by Programs)

Headstock Independent Lubricate System

Machine Light

Coolant System

3-jaw chuck

Tool Kit

Oil Gun

90 Degree Movable Control Console

Vertical 4-Station Electric Turret

Operation Manual


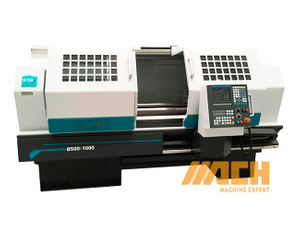

CKE6150Z DMTG CNC Machine Tool Flat Bed CNC Lathe Machine (4)

CKE6150Z DMTG CNC Machine Tool Flat Bed CNC Lathe Machine (5)

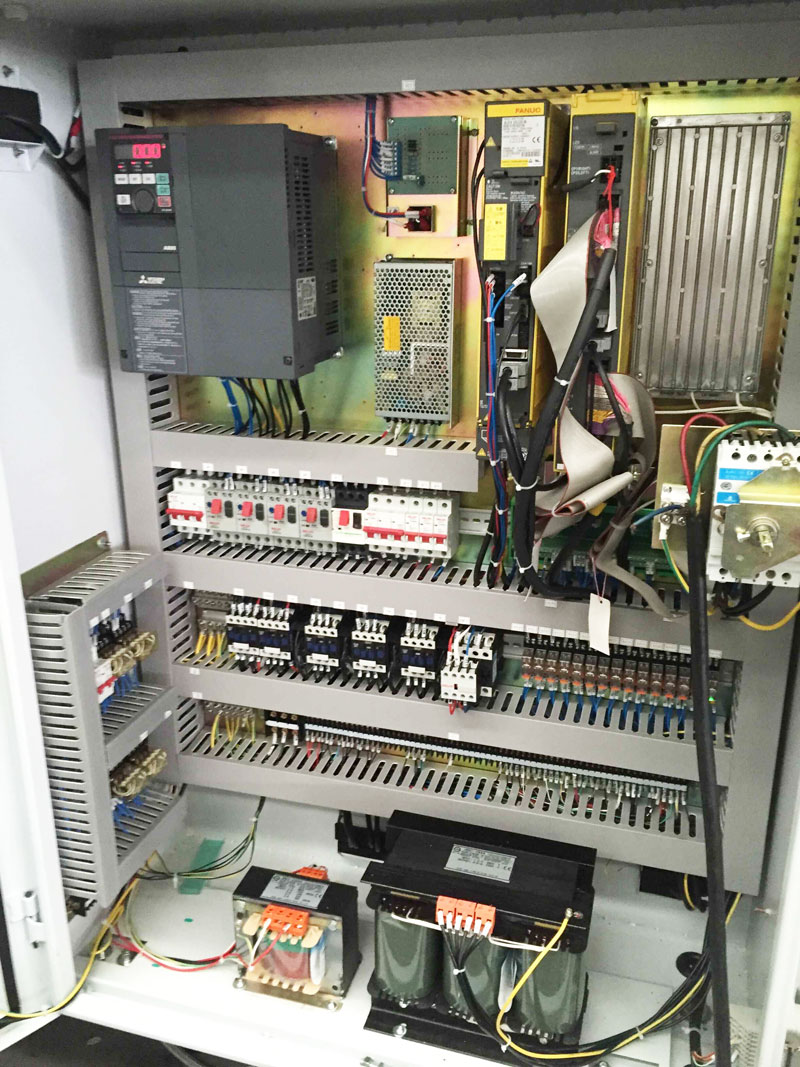

CKE6150Z DMTG CNC Machine Tool Flat Bed CNC Lathe Machine (6)



Optional-Parts

Door interlock

Chuck guard with switch

CE electrics

Horizontal 6-Station   Turret

Taiwan 200mm hydraulic chuck   (through-hole)

Hydraulic tailstock

Hydraulic station, needed   for both hydraulic chuck and hydraulic tailstock or each of them

Steady rest     Dia:12-100mm

Live Center M5

Anti-vibration pads (1 set)

Germany type quick change   toolpost to replace standard 4 station electric turret




Guarantee


Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cnc lathe. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The cnc lathes are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.

  • When the cnc lathes are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.

  • During this period of one year warranty , if the cnc lathes were damaged by non-artificial reasons, we are responsible for repairing or changing parts.

  • During this period of warranty, if there is something wrong with the cnc lathe, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.

  • After the warranty, we charge only cost price for maintaining the cnc lathes within three years.

  • Other after-sale terms can be agreed by buyer and seller in addition.
