CK7516 High Quality High Speed Precision Slant Bed CNC Lathe Machine


features

a. Its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design.
b. Designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor.
c. Key parts like bearings of main spindle and of feeding screw are all famous foreign products.
d. The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately.
e. The lathe can be equipped with FANUC 0i-TD, FANUC 0i Mate-TD, Siemens 810D, 802D, DASEN 3i and etc on request. or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).
f. The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.


Specifications


ITEMS
UNIT
CK7516
                      CK7516A
CK7516C
Capacity
Max.swing diameter over bed
mm
φ400
φ400
φ400
Max.swing dia. over slide
mm
φ260
φ260
φ180
Max.turning diameter
mm
φ285
φ285
φ285
Max.turning length
mm
400
400
400
Max.bar diameter
mm
φ42
Standard: solid chuck
φ42
Spindle
Type of spindle nose

A2-5
A2-5
A2-5
Spindle bore diameter
mm
φ57
φ57
φ57
Chuck diameter
mm
φ165
φ165
φ165
Spindle speeds
r/min
55-5500
( Servo Motor)
80-3500
(Frequency-changer adjusting speed)
55-5500
Spindle motor power (continuous/30min)
kW
11/15(α)
7.5/11
11/15
Tailstock
Quill diameter
mm
φ70
φ70
φ70
Quill travel
mm
80
80
80
Taper of center(standard/alive spindle)

Morse No.4/2
Morse No.4/2
Morse No.4/2
Feeds
Travel X/Z
mm
165/410
165/410
165/410
Rapid traverse rate X/Z
m/min
12/16
12/16
30/30
FANUC servo motor torque X/Z
N•m
8/12
11/20
8/12
Turret
Number of turret station

12/8
12/8
12/8
Tool size(turning/boring)
mm
20×20/φ32
20×20/φ32
20×20/φ32
Others
Slant degree of bed

45°
45°
45°
Power supply
kVA
35
35
35
Dimensions (L×W×H)
mm
2540×1670×1710
2540×1670×1710
2370×1670×1710
Weight
kg
3000
3000
3000





Photos

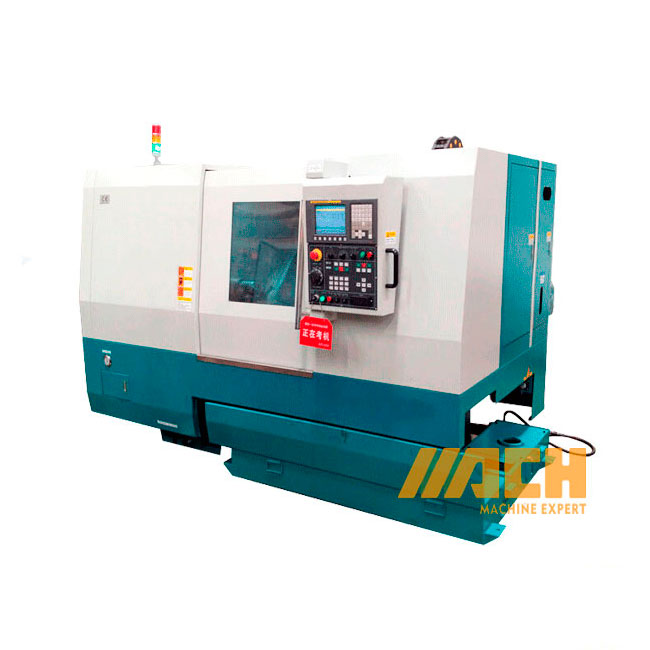

CK7516 China Manufacturer Hot Sales High Quality Slant Bed CNC Lathe Machine





Standard-Parts

The main spindle is driven by servo motor.
8-station Electric Tool Post
Hydraulic
El power Unit
Hydraulic 3-jaw Chuck (6" with through hole type)
Lubrication Unit
Coolant Supply System
Patrol Light


Guarantee


Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the Slant Bed CNC Lathe Machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The Slant Bed CNC Lathe Machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the Slant Bed CNC Lathe Machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the Slant Bed CNC Lathe Machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the Slant Bed CNC Lathe Machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the Slant Bed CNC Lathe Machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
