CDL Series DMTG High Precision Manual Metal Lathe Machine

DMTG CDL Series Lathe Machine
MOQ: 1

Color:
Quantity:
  • CDL Series
  • MACH
CDL Series DMTG High Precision Manual Metal Lathe Machine

Specifications

Item CDL6236 CDL6241 CDL6246 CDL6251
Specification
Max swing over bed 360mm 410mm 460mm 510mm
Max swing over carriage 180mm 230mm 270mm 320mm
Center distance 750mm 1000mm 1500mm
Max swing in gap 590mm 640mm 675mm 735mm
Width of bed 300mm
Head stock
Spindle nose C6/D6 D6 D8
Spindle bore 48mm 52mm 82mm
Taper of spindle bore M6 1:20(F 90)
SpindIe speeds 32-2000rpm (12 speed) 16-1600rpm (12 speed)
Thread
Range of inch threads 2-56TPI
Range of metric threads 0.5-14mm
Range of module threads 0.5-14mm
Range of Di metrical pilch thread 2-56 D.P
Longitudinal feed 0.06-0.82mm/rev(0.002″-0.032″/r)
Cross feed 0.017-0.242mm/rev(0.007″-0.0095″/r)
Leadscrew diameter 36mm
Pitch of leadscrew 6mm
Tailstock
Taper of tailstock quill M4
Travel of tailstock quill 150mm
Diameter of tailstock quill 60mm
Motor
Power of main motor 3/4.5kW(4/6HP) 5.5kW
Power of coolant motor 90W(0.125HP) 90W
Net weight 1228kg 1353kg 1593kg 1630 2010 2220kg 1660 2040 2250kg
Gross weight 1378kg 1553kg 1893kg 1780 2555 2720kg 1810 2585 2750kg
Packing dimensions C.D. WOODEN CASES STEEL PALLET
75mm 2230×1090×2000mm 2070×1100×1780mm
(L×w×H) 1000mm 2480×1090×2000mm 2300×1100×1780mm
1500mm 2980×1090×2000mm 28570×1100×1780mm




Photos

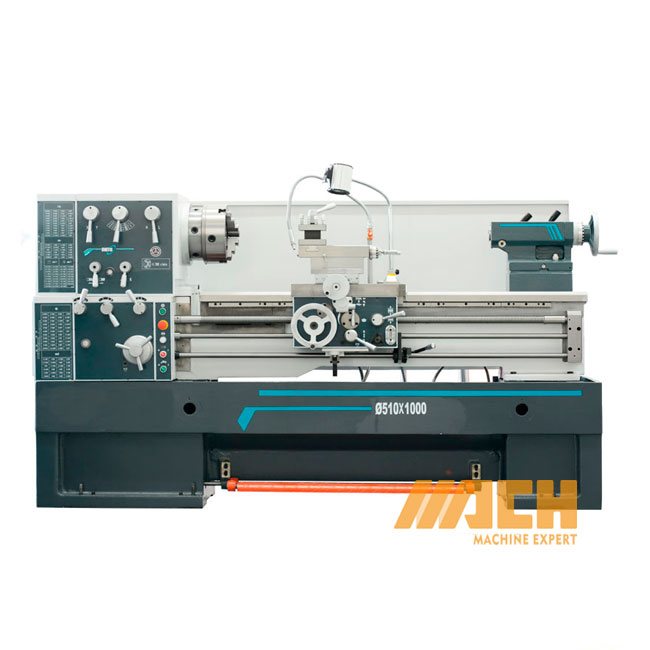

CDL Series DMTG High Precision Manual Metal Lathe Machine
Standard-Parts

3 jaw chuck
4 jaw chuck
Face plate
Drive plate
Steady rest
Follow rest
Chuck guard
Toolpost guard
Coolant system
Fixed center
Center sleeve
Oil gun
Thread chasing dial
Work light
Tools
Operator Manual


Optional-Parts


2 Axis SINO DRO 1000mm factory installed
Taper Turning attachment
Quick change tool post
Foot brake
CE electrics
Live center
Spindle center
Spindle center sleeve
Anti-vibration pads


Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the lathe machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the lathe machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
