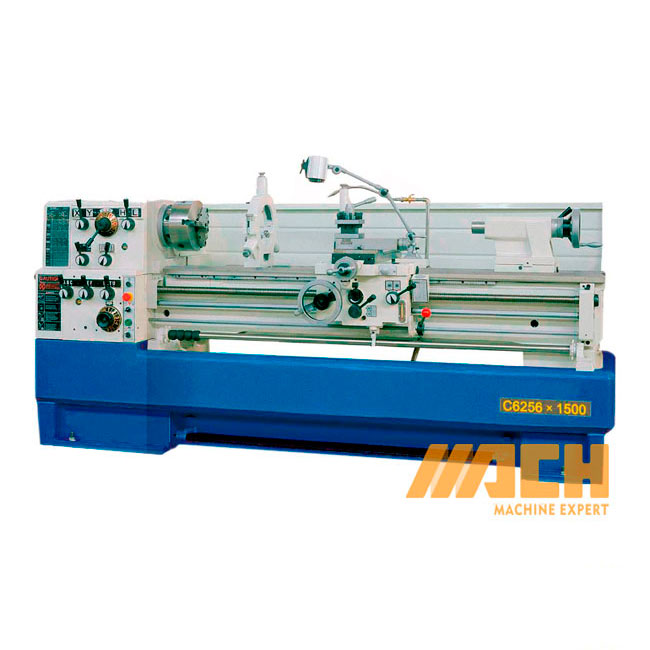

C6256 Horizontal Universal Gear Head Lathe Machine Tool

Specially produce for Germany Knuch Company.
Minimum order quantity: 1

Color:
Quantity:
  • C6256
  • MACH
  • As per buyer's request.
  • Horizontal
  • New
  • Metal Processing
C6256 Horizontal Universal Gear Head Lathe Machine Tool


Specifications

SPECIFICATION MODELS
C6251×1000/1500/2000/3000 C6256×1500/2000/3000
  CAPACITY
  Swing over red 510mm(20") 560mm(22")
  Swing in gap 300mm(11-7/8") 350mm(13-3/4")
  Swing of gap 738mm(29") 788mm(31")
  Length of gap 200mm(8")
  Distance between centers 1500mm(60") 2000mm(78") 1500mm(60") 2000mm(78")
  Center height 1135mm 1160mm
  Width of bed 350mm(13-3/4")
  HEADSTOCK
  Spindle nose D1-8
  Spindle bore 80mm(3-1/8")
  Taper of spindle bore No.7Morse
  Range of spindle speed 12changes25-1600r/min
  FEEDS AND THREADS
  Max.travel of compound rest 130mm(5-1/8")
  Max.travel of cross slide 326mm(12-15/16")
  Leadscrew pitch 6mmOr4T.P.L
  Max.section of tool 25×25mm(1×1")
  Longitudinal feeds range 35kinds0.059-1.646mm/rev(0.0022"-0.0612"/rev)
  Cross feeds range 35kinds0.020-0.573mm(0.00048"-0.01354")
  Metric threads range 47kinds0.2-14mm
  Inch threads range 60kinds2-112T.P.L
  Diametrical pitches range 50kinds4-112D.P.
  Module pitches range 39kinds0.1-7M.P.
  TALLSTOCK
  Dia of tailstock sieeve 75mm(3")
  Travel of tailstock sleeve 180mm(7")
  Morse taper of tailstock sleeve No.5Morse
  Cross adjustment ±13mm(±1/2")
  MOTOR
  Power of main motor 7.5kw(10HP)3PH
  Power of coolant pump 0.1kw(1/8HP),3PH
  DIMENSION AND WEIGHT
  Overall dimension(L×W×H)cm 290×112×143 340×112×143 290×112×146 340×112×143
  Packing size(L×W×H)cm 296×113×182 346×113×182 296×113×182 346×113×182
  Net weight/Gross weight 2335/2700 2685/3070 2370/2740 2720/3110





Photos

C6241 Horizontal Universal Metal Lathe Machine (2)

C6241 Horizontal Universal Metal Lathe Machine (3)






Standard-Parts
3-jaws self centering chuck
4-jaws independent chuck
4 station tool post
Steady rest
Follow rest
Face Plate
Taper sleeve
Full length splash guard and chip tray
Halogen working lamp
Coolant system
Longitudinal stop
Dead centers
Thread Chasing dial
Operation tool kit with tools

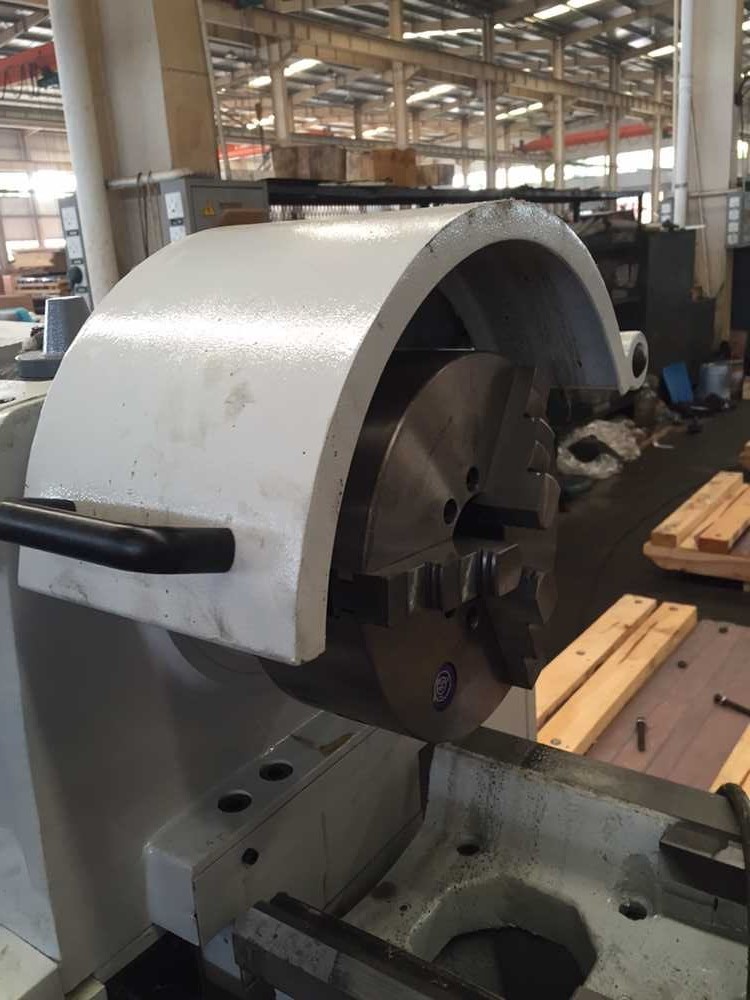

C6241 Horizontal Universal Metal Lathe Machine (4)

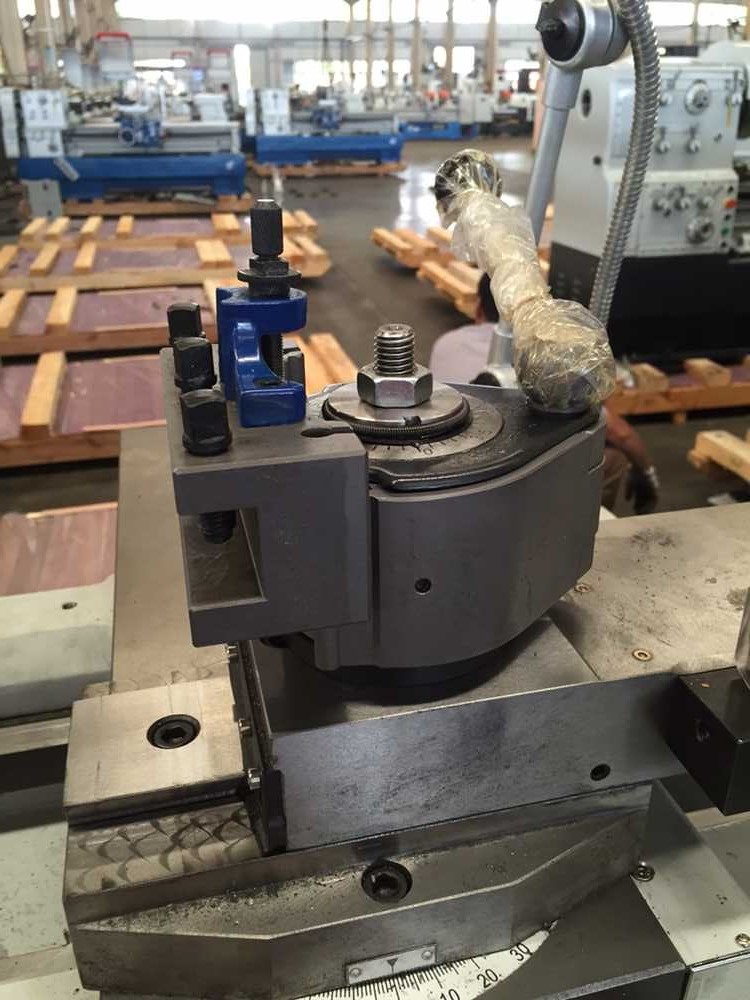

C6241 Horizontal Universal Metal Lathe Machine (5)



Optional-Parts

Chuck Guard
Protection for leadsrew
Protection for toolpost
2 axis SINO DRO
3 axis SINO DRO
CE standard electronic cabinet
Quick Change Tool Post ( European Type )
Taper Turning Attachment
Live Center MT4
Driving Plate




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the lathe machine tool. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.

  • The lathe machine tools are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the lathe machine tools are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the lathe machine tools were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the lathe machine tool, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the lathe machine tools within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
