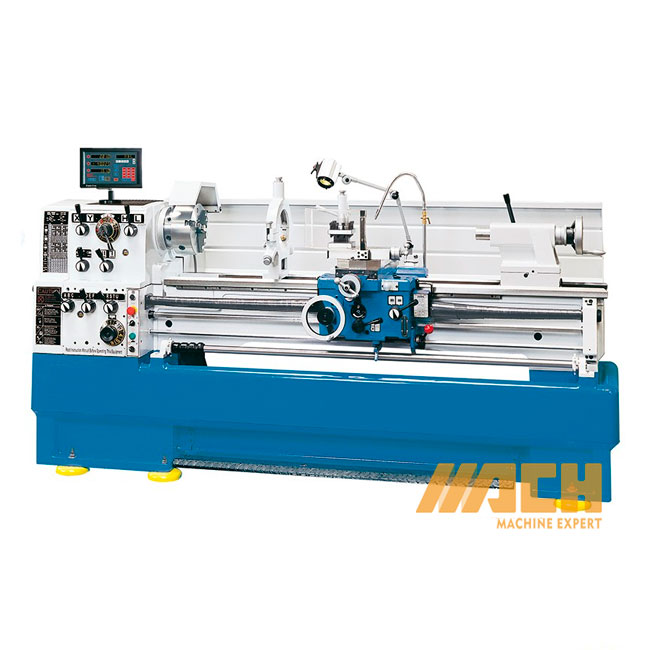

C6246 High Precision Universal Chinese Metal Lathe Machine

Specially produce for Germany Knuch Company.
Minimum order quantity: 1

Color:
Quantity:
  • C6246
  • MACH
  • As per buyer's request.
  • Horizontal
  • New
  • Metal Processing
C6246 High Precision Universal Chinese Metal Lathe Machine



Specifications

Specification C6246×1000 C6246×1500 C6246×2000
Capacity
Swing over bed 460mm(18")
Swing over cross slide 270mm(10-3/4")
Swing in gap 690mm(27-1/8")
Distance between centers 1000mm(40") 1500mm(60") 2000mm(80")
Valid length of gap 165mm(6-1/2")
Width of bed 300mm(11-13/16")
Headstock
Spindle nose D1-6
Spindle bore 58mm(2-1/4")
Taper of spindle bore No.6 Morse
Range of spindle speed 12 changes, 25~2000r/min
Feeds and threads
Max.travel of top slide 128mm(5")
Max.travel of cross slide 285mm(11-1/4")
Max.section of tool 25×25mm(1"×1")
Pitch thread of leadscrew 6mm or 4T.P.I.
Longitudinal feeds range 42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev)
Cross feeds range 42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev)
Metric threads range 41 kinds, 0.1~14mm
Inch threads range 60 kinds, 2~112T.P.I.
Diametrical pitches range 50 kinds, 4~112DP
Module pitches range 34 kinds, 0.1~7MP
Tailstock
Dia. of tailstock sleeve 60mm(2-5/16")
Travel of tailstock sleeve 128mm(5")
Taper of tailstock sleeve No.4 Morse
Motor
Power of main motor 5.5kW(7.5HP) 3PH
Power of coolant pump 0.1kW(1/8HP) 3PH
Dimension and weight
Overall dimension(L×W×H) cm 220×108×137 275×108×137 325×108×137
Packing size(L×W×H) cm 225×112×162 280×112×156 330×113×156
Net weight 1720kg 1970kg 2120kg
Gross weight 2045kg 2330kg 2515kg




Photos

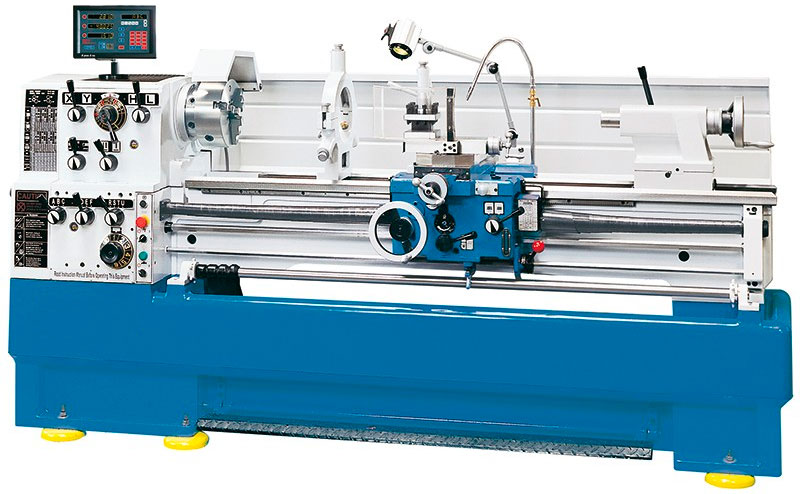

C6246 High Precision Universal Chinese Metal Lathe Machine (2)





Standard-Parts
3-jaws self centering chuck
4-jaws independent chuck

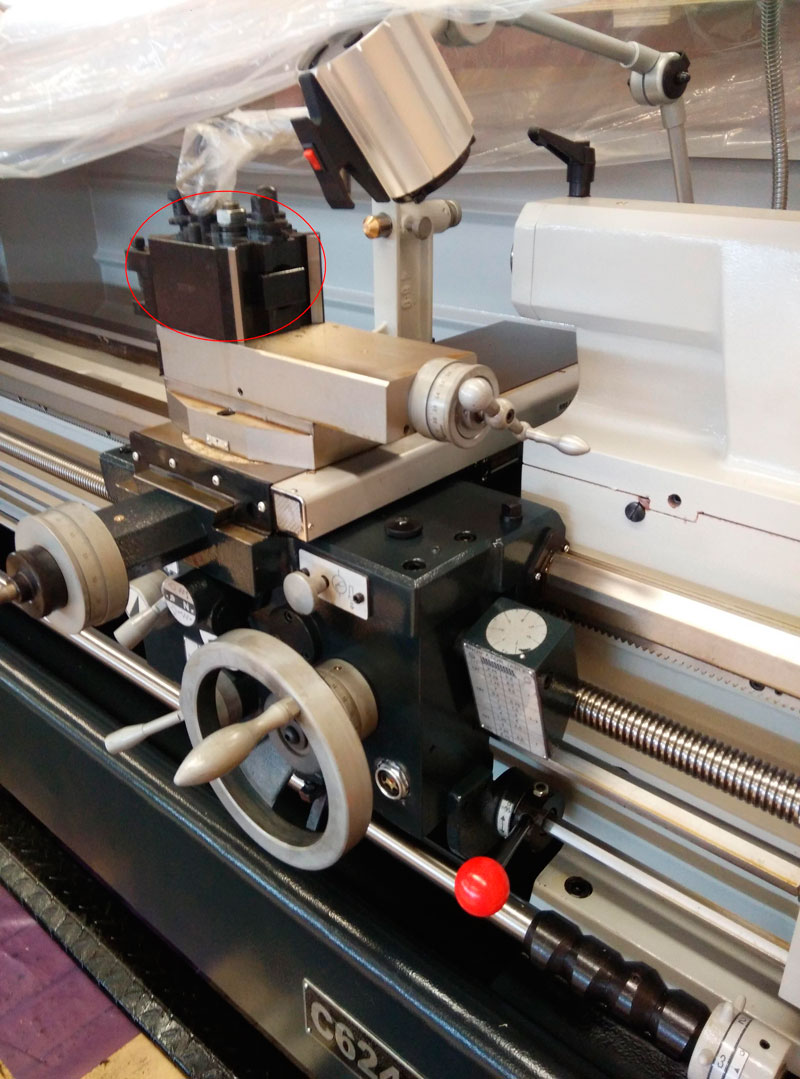

4 station tool post
Steady rest
Follow rest
Face Plate
Taper sleeve
Full length splash guard and chip tray
Halogen working lamp
Coolant system
Longitudinal stop
Dead centers
Thread Chasing dial
Operation tool kit with tools



Optional-Parts

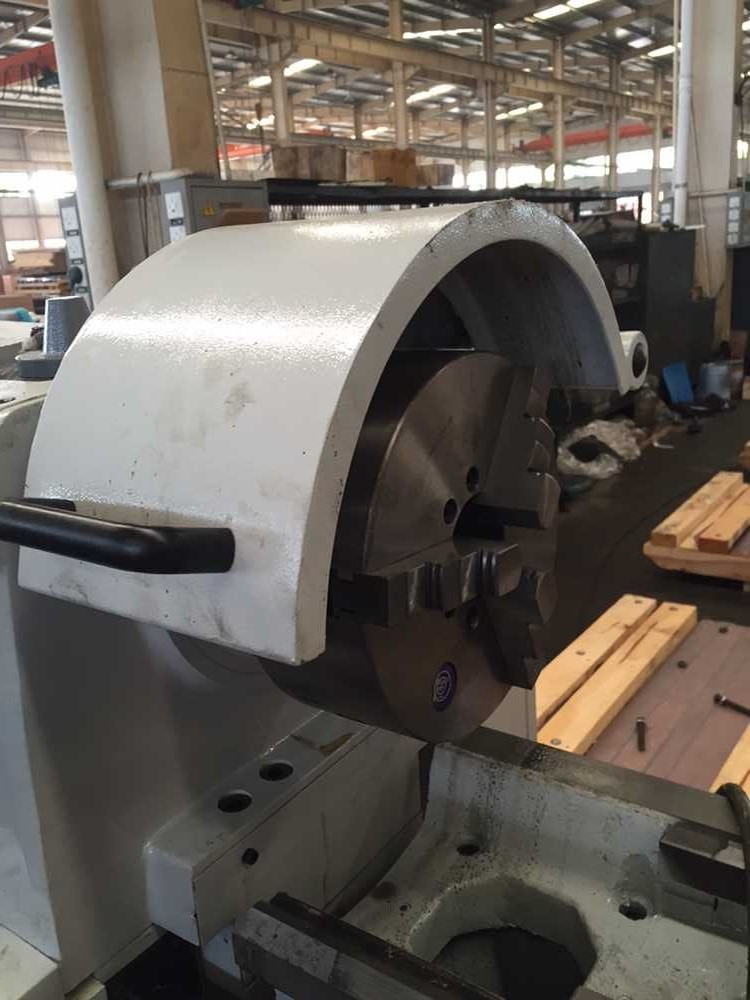

Chuck Guard
Protection for leadsrew
Protection for toolpost
2 axis SINO DRO
3 axis SINO DRO

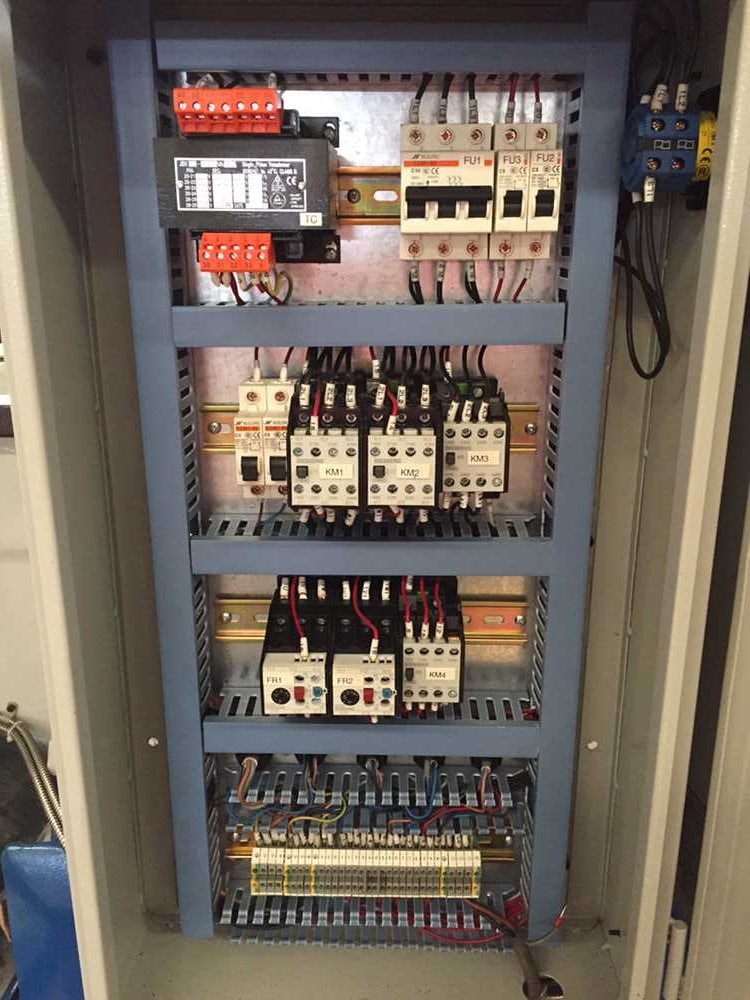

CE standard electronic cabinet
Quick Change Tool Post ( European Type )
Taper Turning Attachment
Live Center MT4
Driving Plate




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the metal lathe machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.

  • The metal lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the metal lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the metal lathe machine were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the metal lathe, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
